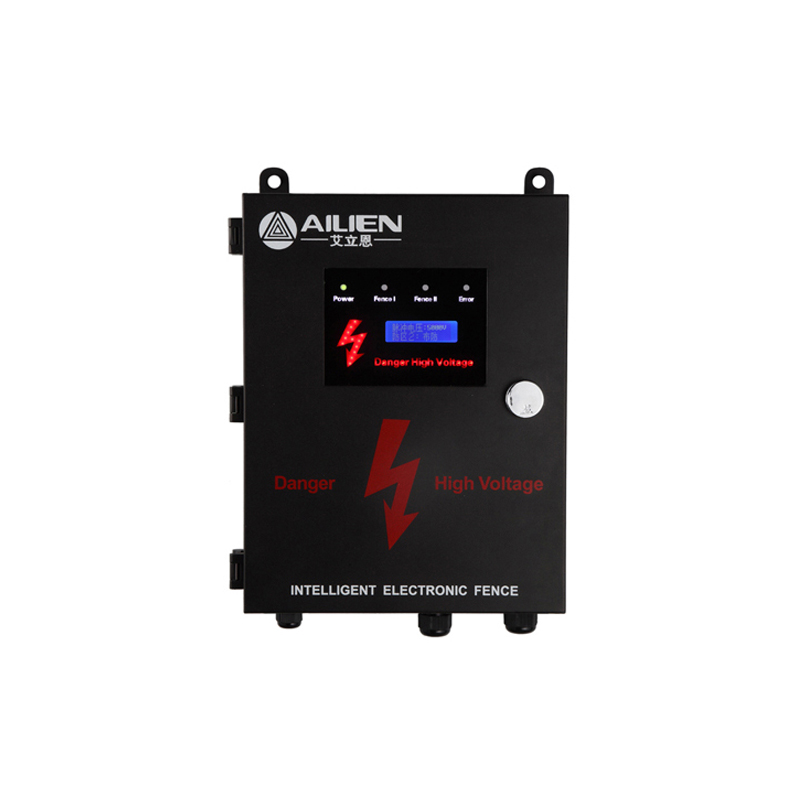

4 line or 6 line high and low voltage automatic switch pulse host
- Explain
1.The unique waterproof design,can be used outdoors.
2.The unique LED display,intuitive and straightforward.
3.With three functions of deterrence.block and alarm.
4.The system can individually alarm or networking alarm.
5.High voltage and low energy design,safe and reliable
6.Can be equipped with DC12V/7AH battery,can continue to work when power failure.
|
Item
|
catalogue
|
||
|
Product Type
|
High Voltage Pulse Detector
|
||
|
Product Specification
|
ALN-EF2008-14S
ALN-EF2008-16S
|
ALN-EF2008-24S
ALN-EF2008-26S
|
|
|
Defence Zone
|
1
|
2
|
|
|
Power Supply
|
AC220V/5-HZ-60HZ,30W
|
||
|
Product Housing
|
Industrial Box insulating paint
|
||
|
Product Dimension
|
350mm*270mm*150mm
|
||
|
Product Weight
|
Without battery 7.25KG
|
With battery 9.05KG
|
|
|
Waterproof Rating
|
≥IP54
|
||
|
LCD Display
|
Blue Screen with English Display
|
||
|
High and Low Voltage swtich
|
(OFF:Automatic switch NOT set to 5000V)
ON:switch turn on,time set is “0”,time“0”-"12”,
Low voltage 700V.time“12”-"24”,Automatically switch to high
voltage 5000V
|
||
|
Pulse Voltage Peak
|
≥5000V but ≤10000V
|
||
|
Pulse duration
|
≤0.1S
|
||
|
Maximum Power Per Pulse
|
≤2.5mC
|
||
|
Pulse Current Peak
|
≤5.0J
|
||
|
Pulse time intervals
|
≤10A(greater than 0.3ms ＜300mA
|
||
|
Alarm Output
|
Relay Contact Output NC、NO
Contact Rating AC、DC30V0.5AMax
|
||
|
Working Temperature
|
-25~+55℃
|
||
|
Working Relative Humidity
|
≤95%(RH)
|
||
