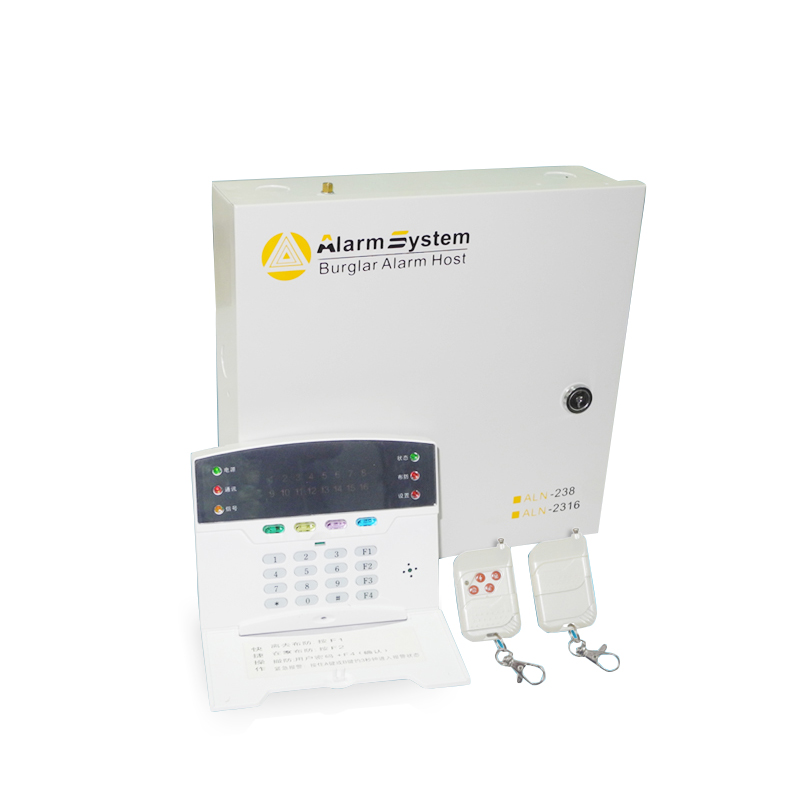

ALN-238/2316PSTN Alarm System with 8 Wired(16 Wired Optional) 16 Wireless Defenc

ALN-238/2316PSTN Alarm System with 8 Wired(16 Wired Optional) 16 Wireless Defenc
  • Explain


    1.High-speed digital communication,compatible ADEMCO4+2, CID digital of communication protocols;submitted information to the alarm center.

    2. It can output module with eight-way control output(mainly used in joint monitoring, control appliances, lights,etc.)

    3.The system can be programmed to carry out a variety of setting, such as alarm sound manner. Stand type, recording, monitoring, remote control the police telephone number, telephone line testing and so on. Wired and wireless compatibility.

    4. Can set up 6 groups alarm phone number(fixed line or mobile phone number ) and 3 groups alarm center telephone number.Police trigger conditions, the cycle of dial-up number.

    5.8 way of arming mode:leave arming, perimeter arming,delay arming,remote arming,stand-alone alarm, mandatory arming ,time arming, remote control arming.

    6. 6 way of disarming mode: single defense area disarming, password keyboard disarming, remote disarming, receive alarm disarming,timing disarming, remote control disarming.

    7. 8 defense zone mode:timely defense zone, delay defense zone, 24 hours defense zone, perimeter defense zone, fire alarm defense zone,gas defense zone,check defense zone ,bypass defense zone.

    8. Built-recording module to record 10-20 seconds of voice, voice prompt alarm.

    9. Storage 50 event log, can inquire defense zone alarm and arming/disarming information.

    10.A “watchdog” function to prevent the crash.

    11.With 8 wired defence zone + 16 wireless defence zone(ALN-238)

         With 16 wired defence zone + 16 wireless defence zone(ALN-2316)

    Model No.

    ALN-238/ALN-2316

    Power Supply

    AC220V±10%

    Static Current Consumption

    100Ma

    Power

    1.5W

    Alarm Output

    650mA,12V

    Output Voltage

    DC12V~15V

    Wireless Frequency

    315/433Mhz optional

    Network

    PSTN

    Defence Zone

    8 wired zone + 16 wireless zone(ALN-238)

    16 wired zone+16wireless zone(ALN-2316)

    Working Environment

    Temperature: -25℃~55

    Humidity:RH 95%

    Produce weight

    3KG

    Metal box size

    255*235*70(mm)

    Keyboard size

    149*119*25(mm)
