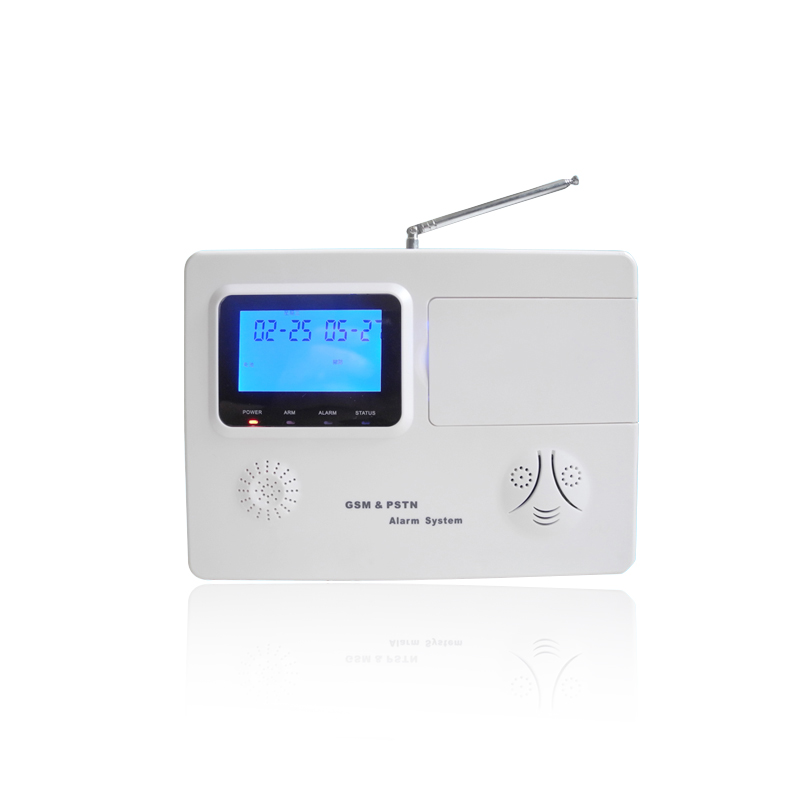

ALN-5800G(GSM+PSTN) Home/Office Alarm System With 4 Wired and 99 Wireless Defenc

1.PSTN/GSM dual network alarm system.

2.Built-in propaganda horn without connecting another propaganda device.

3.Can be directly through GSM network of control panel to dial or inquiry the call charges.

4.Realize home appliance remote control,industrial-class wireless communication module.

5.Compatible with Fetion,can control by Fetion on computer .

6.1 group NO signal output,relay linkage alarm output.

7.Can operate the alarm panel by phone/SMS.

8.GSM frequency:850/900/1800/1900MHz.

9.Wireless frequency:315/433MHz optional.

10.Built-in Ni-Hi rechargeable battery,AC-DC.

11.With 4 wired and 99 wireless defence zone.

Accessary(wireless IR sensor 1pcs,wireless door sensor 1set,remote control 2pcs,siren 1pcs, AC Adaptor 1pcs)

Model No.	ALN-5800G
Wireless Receiving Distance	300~500m(open area )
Wireless Frequency	315/433Mhz optional
Network	GSM&PSTN
GSM Frequency	850/900/1800/1900MHz
Power Supply	9V 500mA
Recording&Playing Time	10 seconds
Scheduled Arm/Disarm	4 groups
Compatible Code	2262/1527
Defense Zones	99 wireless zones+4 wired zones
Alarm Output	DC12V 300mA
Alarm Sound Intensity	110dB
Alarm Time	1~20minutes
Working Environment	Temperature: -25℃～55℃	Humidity:RH 95%
Product Dimension	200*147*40(mm)
