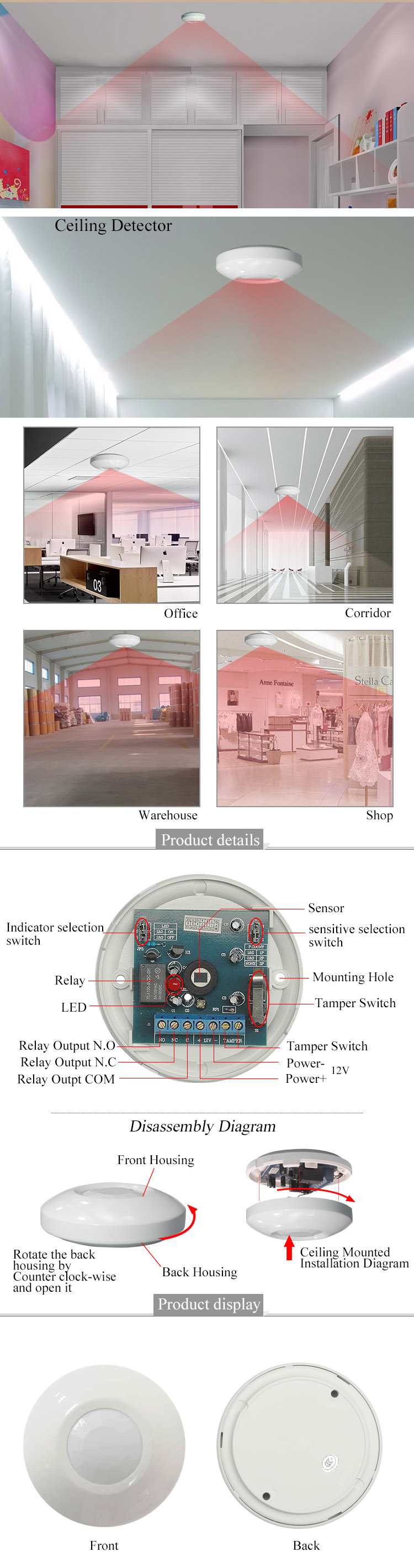

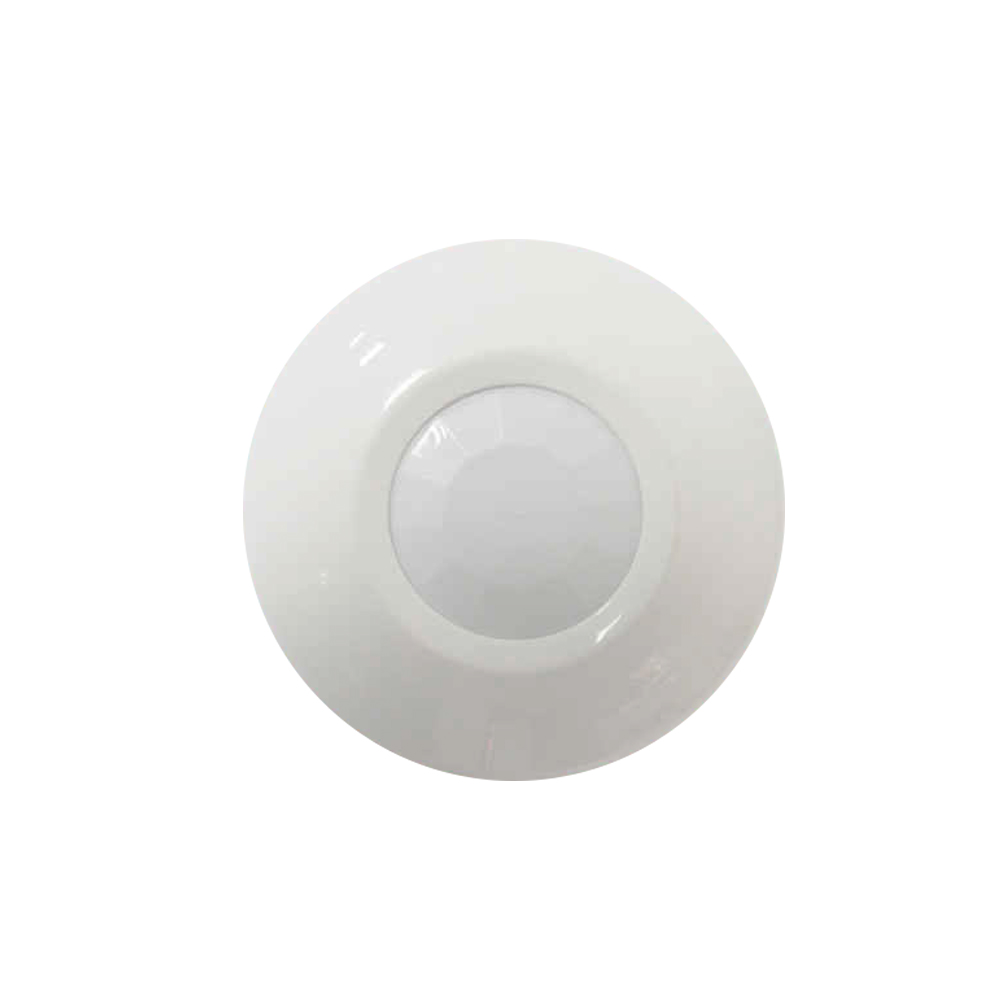

Celling mounted ALN-106
- Explain
1.Detection Mode:Dual low-noisy high-sensitivity pyroelectricity IR
sensor
2.Installation ModeWall/Ceiling Mounted
3.Operating Voltage:12～16VDC
4.Dimension:Φ86mm*25mm
|
Model No.
|
ALN-106
|
|
|
Detection Mode
|
Dual Element low-noisy high-sensitivity
Technology
|
|
|
Detection Angle
|
360°
|
|
|
Detection Range
|
Diameter 7m((When the installation height is
3m)
|
|
|
Installation Height
|
2.4m~3.6m
|
|
|
Infrared Area
|
(12+12+12+12+6+1)=55
|
|
|
Installation Mode
|
Ceiling/Wall Mounted
|
|
|
Power supply
|
12~16VDC
|
|
|
Current Consumption
|
≤20mA,12VDC
|
|
|
Working Environment
|
Temperature: -25℃～+55℃
|
Humidity:RH 95%
|
|
White Light Immunity
|
≥8000LUX
|
|
|
RFI Protection
|
20V/m (20MHz～1000MHz)
|
|
|
Alarm Output
|
Miniwatt Electromagnetic Relay(NO/NC)
Contact Capacity: AC/DC 100mA/30V
|
|
|
Tamper Output
|
(NC)Contact Capacity: AC/DC 500mA/28V
|
|
|
Produce Size
|
Φ86*25(mm)
|
|
