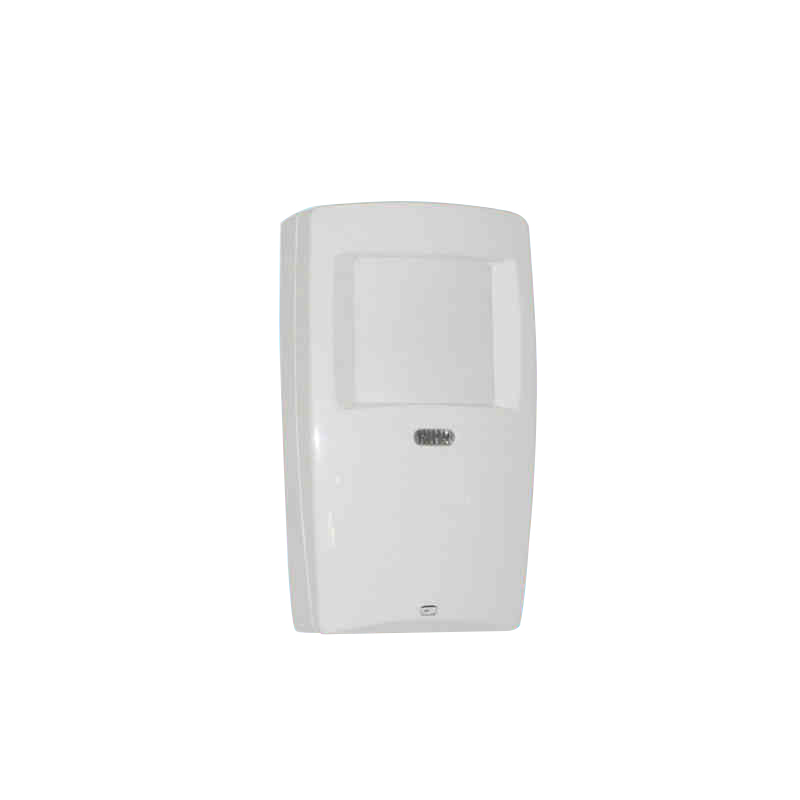

PIR Detector ALN-700
- Explain
1.Detection Mode:Dual Element Passive Infrared.
2.Installation Mode:Wall Mounted
3.Operating Voltage:9～16VDC
4.Dimension:119mm*71mm*42mm
|
Model No.
|
ALN-700
|
|
|
Detection Mode
|
Dual Element Passive Infrared
|
|
|
Detection Angle
|
110°
|
|
|
Detection Range
|
Diameter 11m*12m. 25℃
|
|
|
Installation Height
|
1.8m~2.3m
|
|
|
Installation Mode
|
Ceiling/Wall Mounted
|
|
|
Infrared Area
|
(22+12+6+4)=44
|
|
|
Power supply
|
9~16VDC
|
|
|
Current Consumption
|
8mA~25mA(about 20mA/12VDC)
|
|
|
Working Environment
|
Temperature: -25℃～+55℃
|
Humidity:RH 95%
|
|
White Light Immunity
|
≥8000LUX
|
|
|
RFI Protection
|
20V/m (20MHz～1000MHz)
|
|
|
Alarm Output
|
Solid State Relay;（NC）Contact Capacity: AC/DC 100mA/30V
|
|
|
Tamper Output
|
(NC)Contact Capacity: AC/DC 50mA/24V
|
|
|
Product Dimension
|
119*71*42(mm)
|
|
