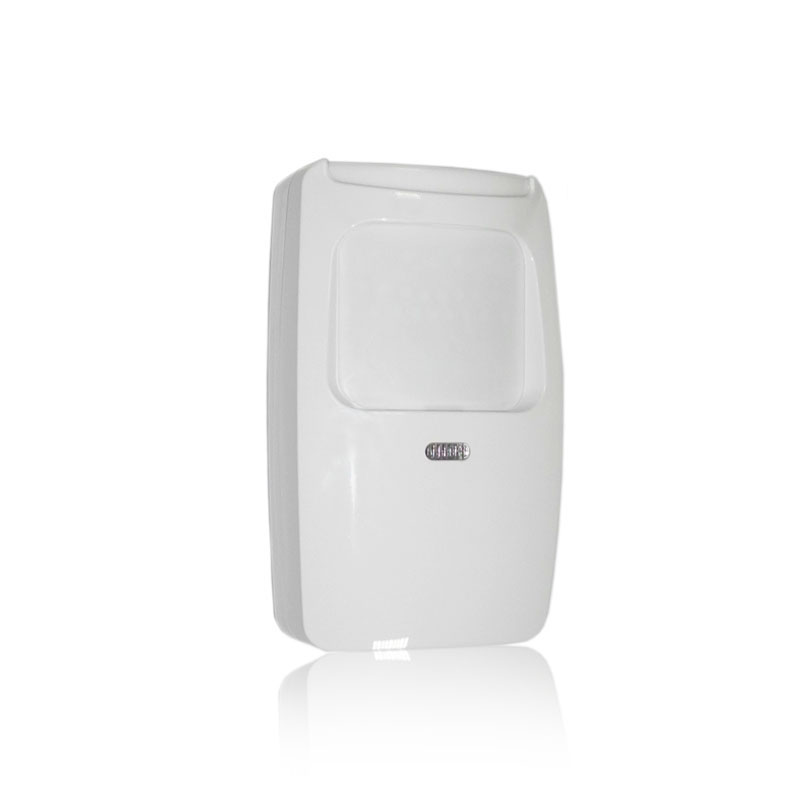

PIR Detector ALN-7225
- Explain
1.Detection Mode:Dual Element Passive Infrared+Microwave Technology
2.Installation Mode:Wall Mounted
3.Operating Voltage:DC9～16V
4.Dimension:125mm*75mm*44mm
|
Model No.
|
ALN-7225
|
|
|
Detection Mode
|
Dual Element Passive Infrared+Microwave
Technology
|
|
|
Detection Angle
|
110°
|
|
|
Detection Range
|
Diameter 11m*12m. 25℃
|
|
|
Installation Mode
|
Ceiling/Wall Mounted
|
|
|
Infrared Area
|
(22+12+6+4)=44
|
|
|
Micro Frequency
|
10.525GHz
|
|
|
Power supply
|
DC9~16V
|
|
|
Current Consumption
|
8mA~25mA(about 20mA/12VDC)
|
|
|
Working Environment
|
Temperature: -25℃～+55℃
|
Humidity:RH 95%
|
|
White Light Immunity
|
≥6500LUX
|
|
|
RFI Protection
|
20V/m (20MHz～1000MHz)
|
|
|
Alarm Output
|
Solid State Relay;（NC）Contact Capacity: AC/DC
100mA/30V
|
|
|
Tamper Output
|
(NC)Contact Capacity: AC/DC 50mA/24V
|
|
|
Pet Immunity
|
18KG
|
|
|
Product Dimension
|
125*75*44(mm)
|
|
