Wired detector ALN-461
- Explain
1.Detection Mode: Dual Element Passive Infrared Detection Technology
2.Installation Mode:Wall/Ceiling Mounted
3.Operating Voltage:9～16VDC
4.Dimension:70mm*28mm*25mm
|
Model No.
|
ALN-461
|
|
|
Detection Mode
|
Dual Element Passive Infrared Technology
|
|
|
Detection Angle
|
15°
|
|
|
Detection Range
|
6m*1.3m
|
|
|
Installation Height
|
2m~3.6m
|
|
|

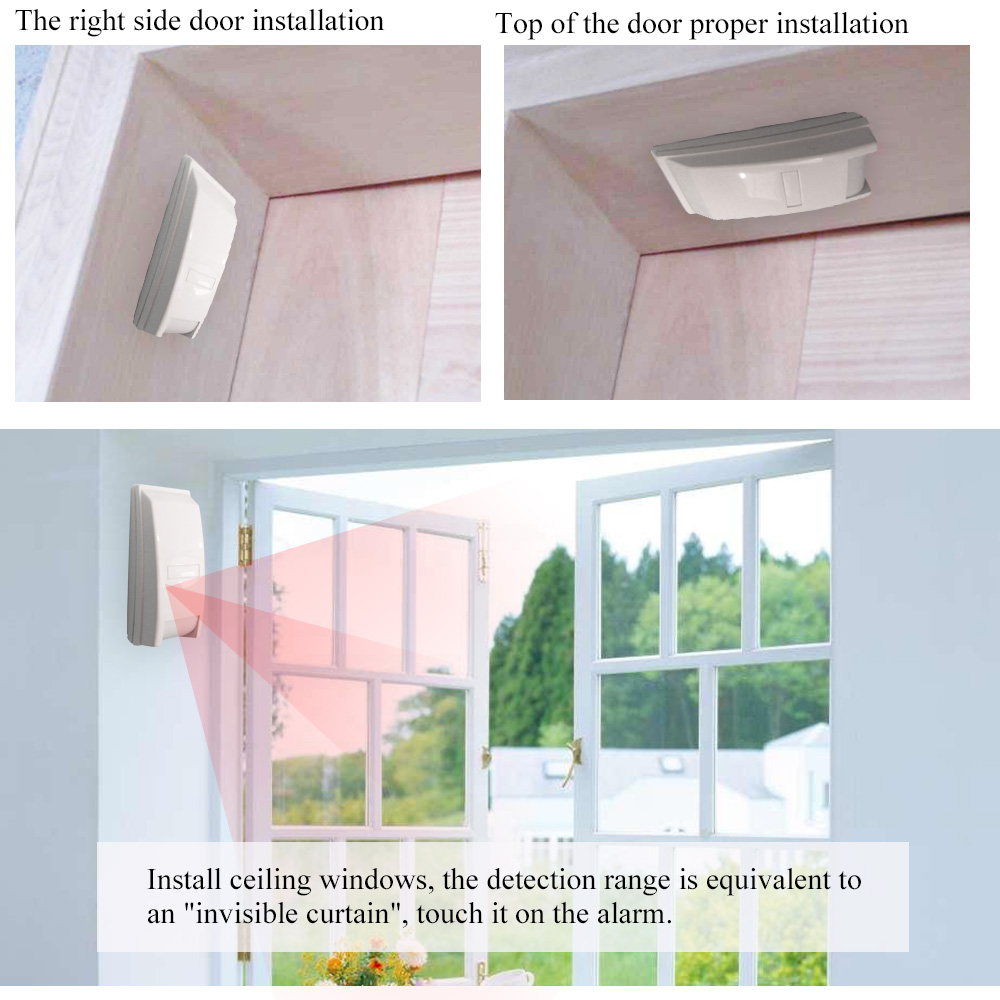

Installation Mode
|
Ceiling/Wall Mounted
|
|
|
Power supply
|
DC9~16V
|
|
|
Current Consumption
|
≤13mA,12VDC
|
|
|
Working Environment
|
Temperature: -25℃～+55℃
|
Humidity:RH 95%
|
|
White Light Immunity
|
≥8000LUX
|
|
|
RFI Protection
|
20V/m (20MHz～1000MHz)
|
|
|
Alarm Output
|
Dry-Reed Relay;（NC）Contact Capacity: AC/DC
100mA/30V
|
|
|
Tamper Output
|
(NC)Contact Capacity: AC/DC 50mA/24V
|
|
|

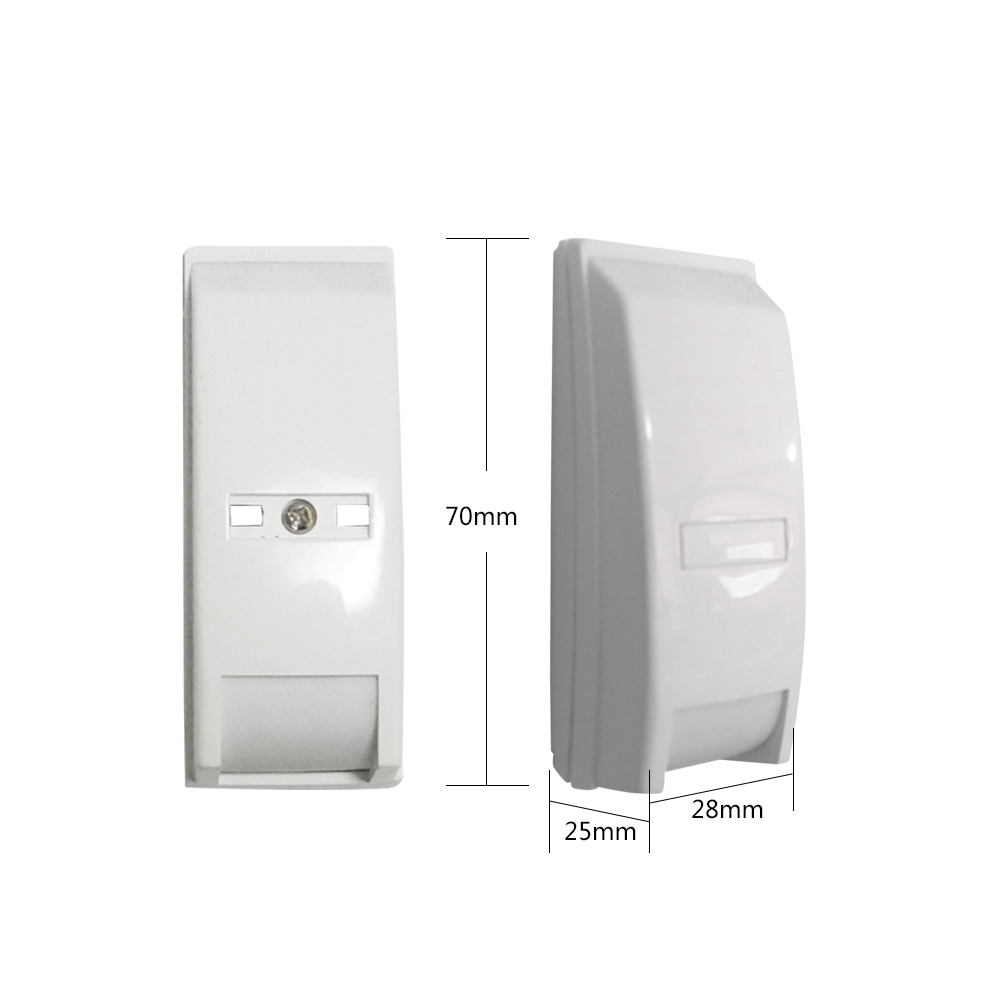

Product Dimension
|
70*28*25(mm)
|
|
