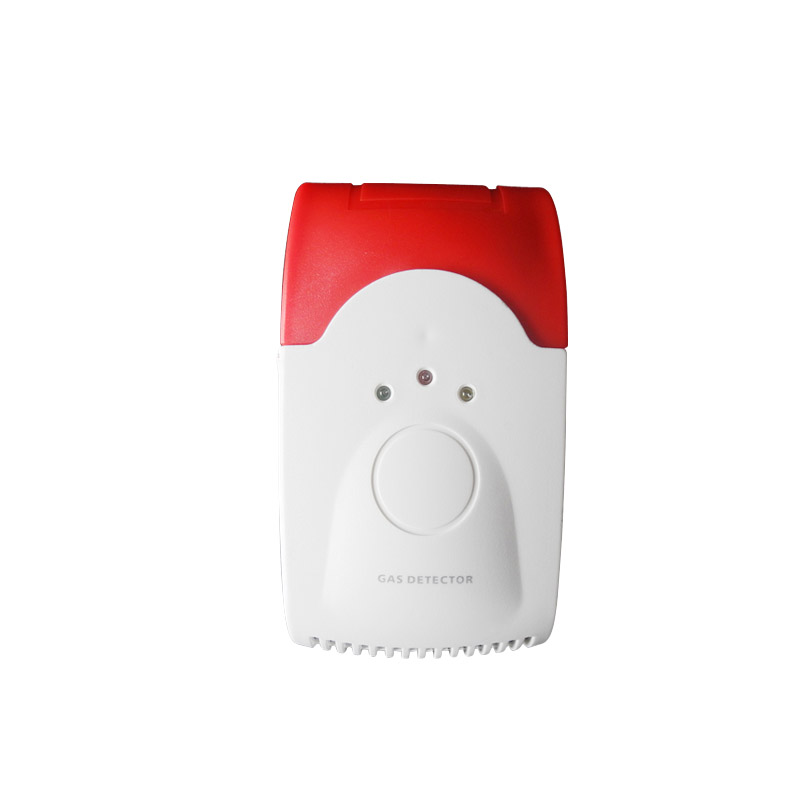

Wired/Wireless Gas Sensor ALN-1288Y/W/ALN-22088Y/W
- Explain
wired/wireless Gas Detector alarm,Auto reset after alarm MCU processing adopted,Auto detect sensor failure Induced gas-natural gas/LPG/LNG SMT design, high stability
|
Type of gas detection
|
Natural gas or LPG
|
|
Working voltage
|
DC10V-14V AC100V-220V, 50Hz
|
|
Quiescent current
|
≤100mA
|
|
Alarm current
|
≤150mA
|
|
Alarming level
|
10%LEL
|
|
Alarming level error
|
±3%LEL
|
|
Buzzer sound pressure
|
≥70dB (1 meter ahead)
|
|
Working environment
|
-25℃~+55℃
|
|
Stability
|
Long time alarming level error ± 5% LEL
|
|
Repeatability
|
Repeating test alarming level error ±33% LEL
|
|
Power consumption
|
＜3W
|
|
Alarm mode
|
Sound and ligth alarm,NO/NC wireless frequency 315MHz or
433MHz(wireless)
|
|
dimension
|
123*72*47(mm)
|
