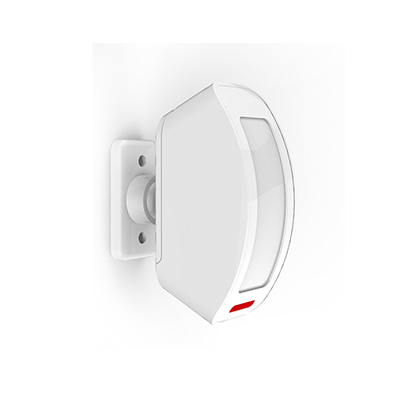

Wireless IR Curtain ALN-P817
- Explain
1.Curtain infrared: generally used for windows and doors.
2.When the curtain infrared detecte a temperature and moving objects it will works.

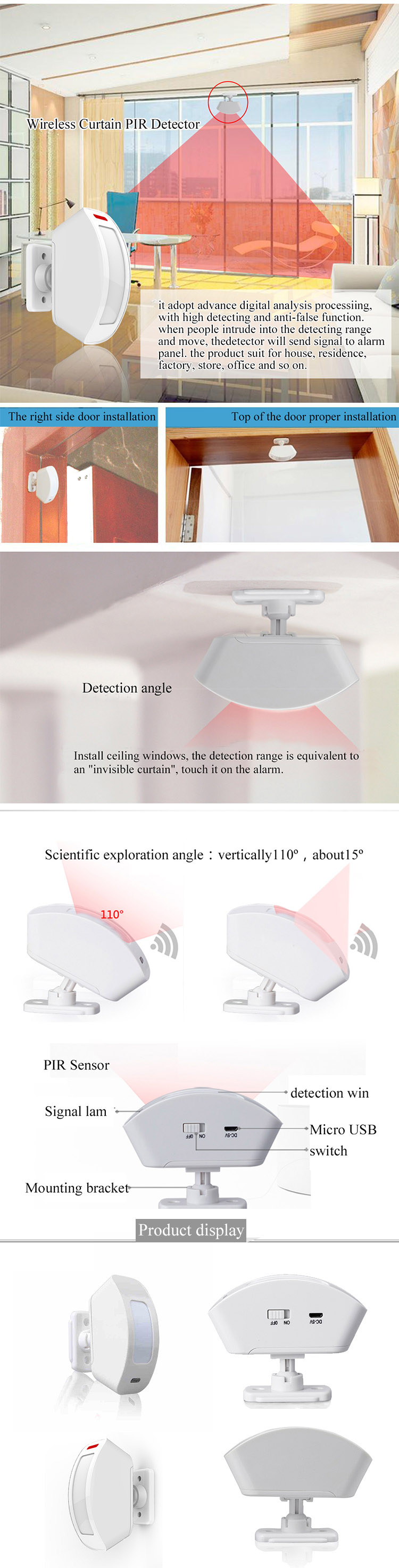

3.Detection angle of 110 degrees, 15 degrees thickness
4. Installation common position: living room with balcony Interchange, bedroom windows, skylights, floor to ceiling windows and other orientation
2.When the curtain infrared detecte a temperature and moving objects it will works.
3.Detection angle of 110 degrees, 15 degrees thickness
4. Installation common position: living room with balcony Interchange, bedroom windows, skylights, floor to ceiling windows and other orientation
| External adapter | USB |
| Adapter | 110-220V |
| Internal battery | DC 9V 6F22 Standby current:≤ 50uA |
| Alarm current | ≤ 20mA |
| Detection range | 8-12 meters / 110 degrees |
| Wireless distance | ≤100 meters |
| Wireless transmitting frequency | 315 MHZ / 433 MHZ (+ 75 KHZ) |
| Shell material | ABS plastics Operating temperature: 80% or (no condensation) |
