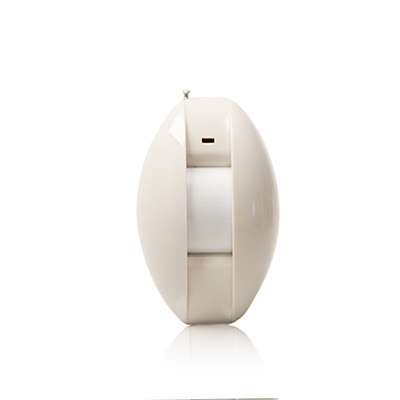

Wireless IR Curtain ALN-525D

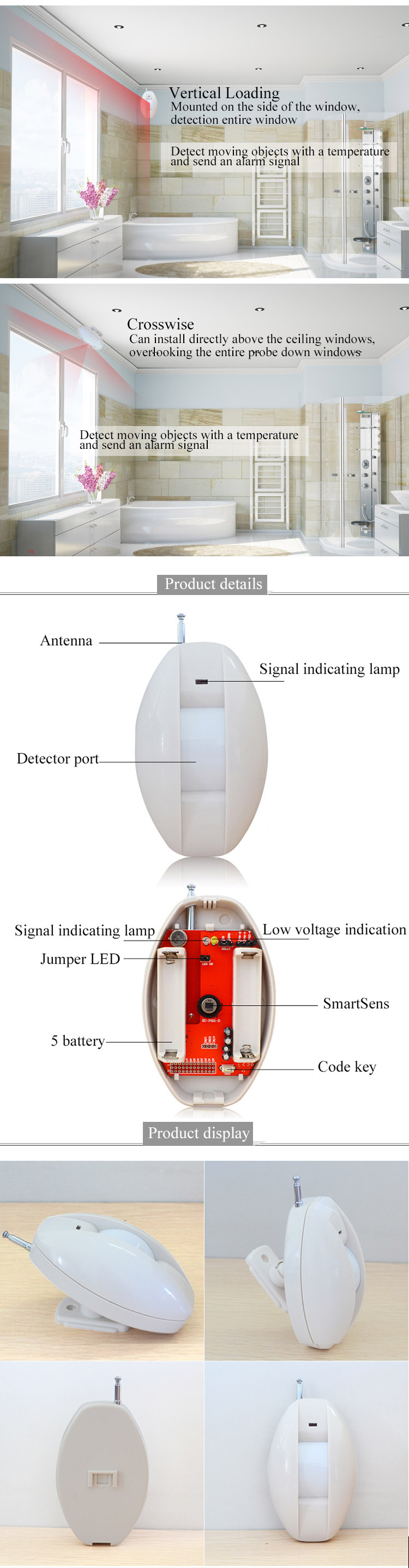

1.Curtain infrared: generally used for windows and doors.

2.When the curtain infrared detecte a temperature and moving objects it will works.

3.Detection angle of 110 degrees, 15 degrees thickness

4. Installation common position: living room with balcony Interchange, bedroom windows, skylights, floor to ceiling windows and other orientation.

sensor type	dual element, rectangle
detector range	14m*90`(standard lens)   16m*18`(long distance lens
sensibility	2 levers adjustable
principle	duo pu le(effect) +energy analyze
self-testing	microwave check
working temperature	-25℃~+55℃
input supply	10~16VDC 30mA
installation height	2.1m+/-10%
alarm indication	red LED flashes 3s( off optional)
alarm output	NC 28VDC 0.15A
tamper device output	NC  28VDC 0.15A
