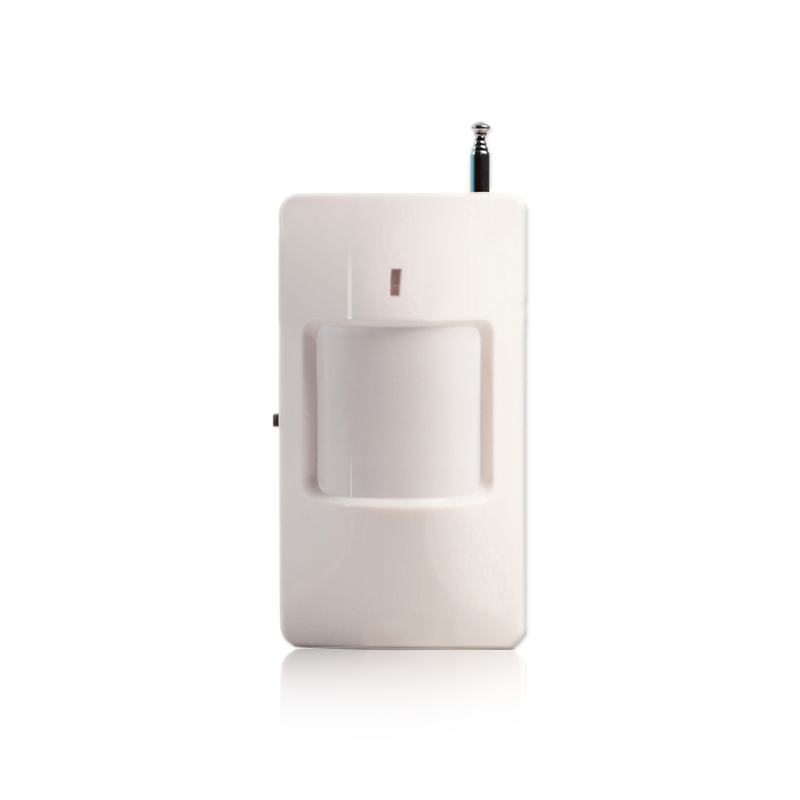

Wireless IR Sensor ALN-P815

Explain

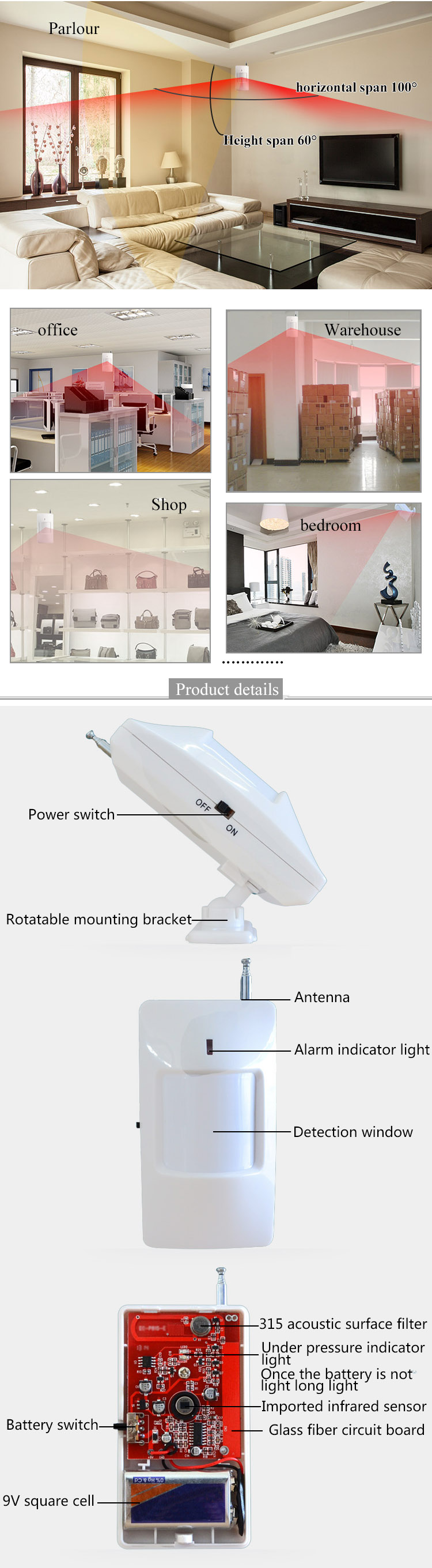

Can detect room, living room, balcony
For detecting the temperature of an object with a
After mounting height of 2 meters,

using the bracket (not to be installed outdoors) uses a 9V block battery,

battery life up to six months,

the signal strength of up to ≤100 meters.

Detection Mode

Dual Element Passive Infrared. low-noisy struction

Detection range

8-12m

Detection angle

horizontal:110° vertical:60°

Transmitting frequency

315/433MHz

Transmitting distance

no obstacle distance of 150 m

Quiescent current

≤60uA

Alarm current consumption

20 uA

Battery Type

9v block battery

Battery life

6-12months

Detection Mode	Dual Element Passive Infrared. low-noisy struction
Detection range	8-12m
Detection angle	horizontal:110° vertical:60°
Transmitting frequency	315/433MHz
Transmitting distance	no obstacle distance of 150 m
Quiescent current	≤60uA
Alarm current consumption	20 uA
Battery Type	9v block battery
Battery life	6-12months
