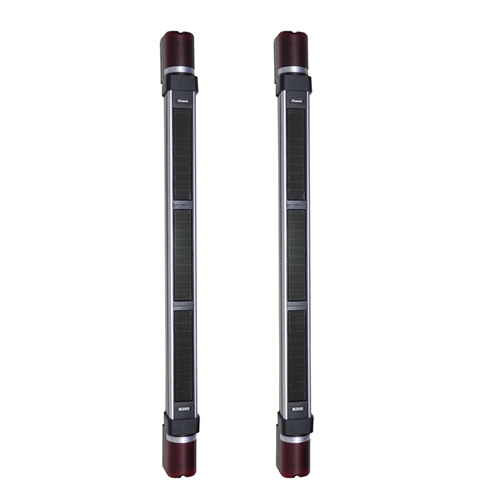

Solar-powered Wireless Four/Six beams Grating
- Explain
Solar-Powered Multi-beam active wireless infrared gratings is a new-type hi-tech environmentally-friendly product. It applies sun's UV rays to supply power and charge for detector, and adopts the wireless signal transmission device to transmit alarm signal instead of power cable and signal line.
1.Using amorphous silicon and low light solar panel for power supply and battery charger.
2.Built-in 3.3V Life PO4 battery for electricity storage, 24 hour maximum contact force≤50 times.
3.Wireless transmitter distance is up to 100m.
4.Patented design with insects and rain-proof structure, waterproof level≤IP66.
5.Unique approach to debugging, make the installation more convenient.
| Infrared Distance | 10M(Outdoor) |
| Wireless Transmitter | 100M |
| Wireless Transmitter Frequency | RF433MHz,315MHz |
| Maximum alarm times in 24 hours | Not more than 50 times |
| Battery Capacity | 500mAh(Transmitter)1000mAh(Receiver) |
| Working envirenment temperaturer ange | -25℃-+55℃ |
| Number of infrared beams | 4beams 6beams |
| Operating Voltage | 3.3V |
| Battery Type | Lifep04 battery |
| Static Operating Current | Transmitter≤0.5mA,Receiver≤0.3mA |
| Infrared Light Wavelength |
940nm±20nm |
| Solar electric panel output current | 4beams 6beams≥1.5mA at a light intensity of 1800LX |
| Size |
662*46*60mm |
