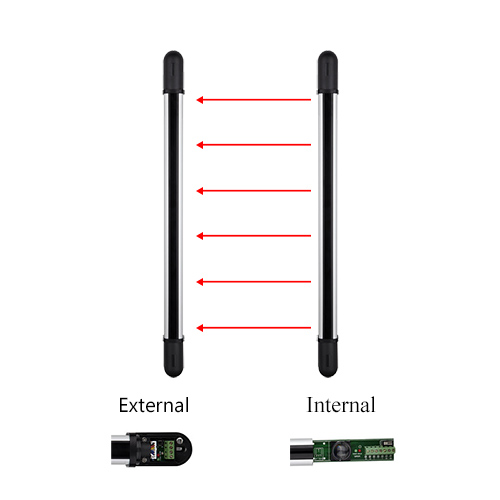

Wired Active Infrared Barrier (Single)
- Explain
1.Intelligent Judgment:
It applies the multi-beam radial and dual-beam recognition principles,when
a thieve enter the guarding area to cover two adjacent infrared beams or more
than two infrared beams for more than 40ms,a wired/wireless alarm signal will be
given,The defects of false alarm and neglected alarm of the traditional detector
can effectively overcome.
2.Object Recognition:
With CPU Intelligent microprocessor control,It gives alarm signal in time
when an illegal intruder pass through,when small animals such as cats,dogs,etc
pass through it,it will not give the alarm signal.
3.High Reliability:
This product with tamper and anti-interference functions,can effectively
prevent the intruder against adopting deceiving and damage approaches and it has
very great guarding effect.
4.Rain-proof and Moisture-proof Functions:
With rain-proof structure,it can work indoor,outdoor and humid
locations.
5.Beautiful and Reliable Structure
The shell body is made by high quality aluminiun alloy material,firm and
endurable.It applys imported spectral filters have very favorable filtering
effects on the visible light.
6.Convenient Installation and Commisioning:
After the installation seat is fixed,the transmitting and receiving angle
of the infrared IR Barrier both can be adjusted within a range of 180
degrees.can adjust the transmission distance by (L/M/F),convenient and
sensitive,The supporting seat with the latest slide design,easy to
install.
|
Number of Beams
|
2 beams
|
3 beams
|
4 beams
|
6 beams
|
8 beams
|
10 beams
|
|
|
Length(cm)
|
33
|
53
|
73
|
113
|
153
|
193
|
|
|
Maximum Static Current(mA)
|
Transmitter
|
≤90
|
≤160
|
≤160
|
≤175
|
≤175
|
≤185
|
|
Receiver
|
≤70
|
≤70
|
≤70
|
≤70
|
≤70
|
≤70
|
|
|
Alert Distance(m)
|
5
|
5
|
5
|
5
|
5
|
5
|
|
|
10
|
10
|
10
|
10
|
10
|
10
|
||
|
20
|
20
|
20
|
20
|
20
|
20
|
||
|
30
|
30
|
30
|
30
|
30
|
30
|
||
|
40
|
40
|
40
|
40
|
40
|
40
|
||
|
60
|
60
|
60
|
60
|
60
|
60
|
||
|
NONE
|
100
|
100
|
100
|
100
|
100
|
||
|
150
|
150
|
150
|
150
|
150
|
|||
|
Power supply
|
DC10.5~24V
|
||||||
|
Alarm Output
|
wired.wireless.Compatible
|
||||||
|
Relay contact capacity
|
3A/125VAC/DC 9V 0.2W
|
||||||
|
Response speed
|
40ms
|
||||||
|
Alarm output time
|
≥ 1second
|
||||||
|
Optical axis adjustment angle
|
Horizontal:180°(±90°)
|
||||||
|
Working environment
|
Temperature:-25℃~+55℃ RH≤95%
|
||||||
