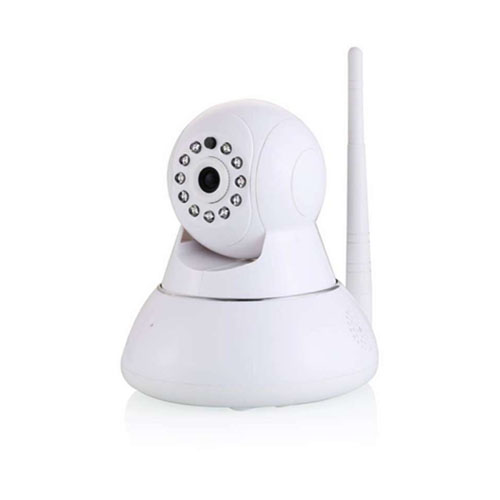

XR Visual Alarm Panel /IP Camera
- Explain
1.Millions of high-definition digital image resolution up to 720p and 960p, support bidirectional stream
2.Remote visual, two-way communication
3.Support sensor type wireless 1527 agreement and RF433MHZ
4.Scene horn alarm, send remote alarm message(mobile or email)
5.Support TF card storage maximum support 64GB
6.Support 2.4G router
7.Support power DC5V2A
8.Support 355 degrees horizontal and 120 degrees vertical
9.Support motion detection function
10.Appearance: Super snowman designs, the rotatable structure
11.Light source: Built-in dot-matrix infrared light, make dark room like daytime as clear
|
|
Model |
ALN-XR100 |
|
Video camera
|
Sensor Type |
1/4” CMOS |
|
Minimum illumination |
Color：0.5Lux@(F1.2,AGC ON),0LUX with IR |
|
|
Black and white：0.05Lux@(F1.2,AGC ON),0LUX with IR |
||
|
Electronic Shutter |
1/50（1/60）s~1/100,000s |
|
|
Shot |
Standard 3.6mm |
|
|
Compression Standard |
Video compression standards |
H.264HighProfile, MJPEG screen shot |
|
Compression output rate |
30Kbps~2Mbps |
|
|
Image |
Effective pixels |
1280*720 |
|
Function
|
Memory function |
SD card storage, network storage |
|
Smart alarm |
Motion detection |
|
|
Support agreement |
TCP/IP，HTTP，DDNS，NTP(HTTPS,SIP,802.1X） |
|
|
General features |
Anti-flicker, third stream, password protection, heartb |
|
|
Interface |
Audio input |
A built-in MIC |
|
Audio output |
Built a high-fidelity speakers |
|
|
Network Interface |
A RJ4510 / 100M Ethernet port should automatically |
|
|
Wireless interface |
An external antenna connection wifi |
|
|
TF card interface |
A TF card interface, maximum support 32G |
|
|
Reset button |
Restore default settings |
|
|
|
Rotation angle |
Horizontal: 355 °, Vertical: 120 ° |
|
General specifications |
Infrared |
6 LED Light |
|
Operating voltage |
DC5V/2.0A |
|
|
Power |
<4W |
|
|
Distance |
3-15M |
|
|
Temperature |
-10℃ ~ +55 ℃ |
|
|
Net weight |
495g |
|
|
Humidity |
10 ~ 90% |
|
|
Size |
92×92×123(mm) |
