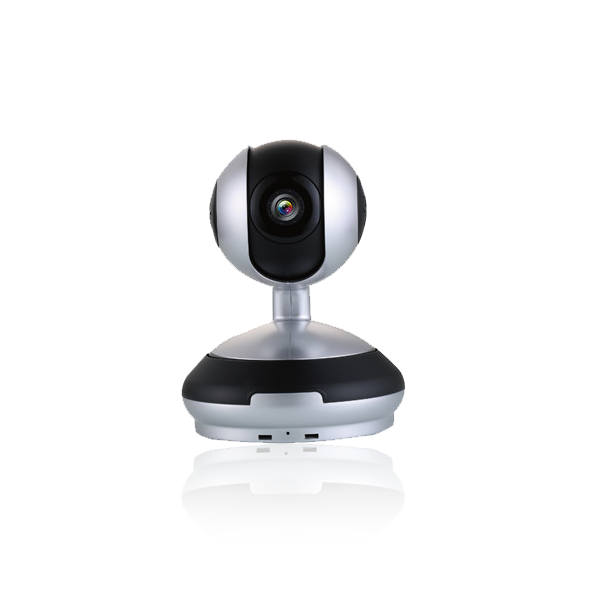

JQR Visual Alarm Panel /IP Camera
- Explain
1.Millions of high-definition digital image resolution up to 720p and 960p,Support bidirectional stream
2.Remote Visual, two-way communication
3.Support sensor type wireless 1527 agreement and RF433MHZ
4.Three options for arming modes (at home, go out and sleep)
5.Support timed arm, optional period
6.Scene horn alarm,send remote alarm message(mobile or email)
7.Support external speakers (wired or wireless)
8.Have malicious interference prompt functions
9.Have a set of relay output alarm linkage
10.Support the Preset point set,where alarm where to see
11.Have temperature and humidity sensor interface
12.Have doorbell function
13.Support TF card storage maximum support 64GB
14.Support 2.4 G router
15.Support power DC5V2A
16.Support 355 degrees horizontal and 120 degrees vertical
17.Appearance: Super robot designs, the rotatable structure
|
|
Model |
ALN-JQR100A |
ALN-JQR130A |
|
Video camera
|
Sensor Type |
1/4” CMOS |
|
|
Minimum illumination |
Color：0.5Lux@(F1.2,AGC ON),0LUX with IR |
||
|
Black and white：0.05Lux@(F1.2,AGC ON),0LUX with IR |
|||
|
Electronic Shutter |
1/50（1/60）s~1/100,000s |
||
|
Shot |
Standard 3.6mm |
||
|
Compression Standard |
Video compression standards |
H.264HighProfile, MJPEG screen shot |
|
|
Compression output rate |
30Kbps~2Mbps |
||
|
Image |
Effective pixels |
1280*720 |
1280*960 |
|
Function
|
Memory function |
SD card storage, network storage |
|
|
Smart alarm |
Motion detection, alarm equipment wireless access，433MHz |
||
|
Support agreement |
TCP/IP，HTTP，DDNS，NTP(HTTPS,SIP,802.1X） |
||
|
General features |
Anti-flicker, third stream, password protection, heartb |
||
|
Interface |
Audio input |
A built-in MIC |
|
|
Audio output |
Built a high-fidelity speakers |
||
|
Network Interface |
A RJ4510 / 100M Ethernet port should automatically |
||
|
Wireless interface |
An external antenna connection wifi |
||
|
TF card interface |
A TF card interface, maximum support 64G |
||
|
Reset button |
Restore default settings |
||
|
|
Rotation angle |
Horizontal: 355 °, Vertical: 120 ° |
|
|
General specifications |
Infrared |
6 LED Light |
|
|
Operating voltage |
DC5V/2.0A |
||
|
Power |
<4W |
||
|
Distance |
3-15M |
||
|
Temperature |
-10℃ ~ +55 ℃ |
||
|
Net weight |
495g |
||
|
Humidity |
10 ~ 90% |
||
|
Size |
92×92×123(mm) |
||
