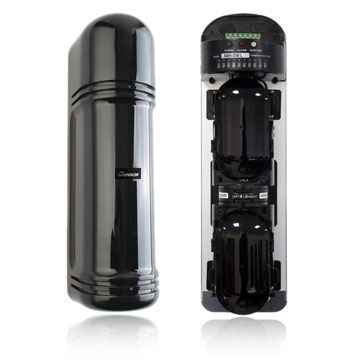

XA Series Two Beams Detector with LED digital display (Economy)
- Explain
1.Adopt two aspheric surface lens,achieve big-bore light beam.
2.Shell with LED visible window,the action can be confirmed more
speedily after setting.
3.Unique product molding design,having sharp differences with
other products.
4.Lightproof all black shell design,with new stray light
filtering function.
5.IP66 waterproof grade,all around rubber O-ring ,it can be
rainproof,dustproof and mothproof.
6.The receiver with LED digital display,calibrate more
intuitively and conveniently.
7.Response time adjustment
8.All around rubber O-ring IP66 waterproof grade
9.Housing with unique LED visible window
|
Name
|
Two Beams Active Infrared Detector
|
|||
|
Model
|
XA-030D
|
XA-060D
|
XA-080D
|
XA-100D
|
|
Warning distance
|
30m
|
60m
|
80m
|
100m
|
|
Detection mode
|
Infrared Pulse
|
|||
|
Detection way
|
2 beams blocked off at the same time
|
|||
|
Optical axis adjustment range
|
Vertical direction±5° Horizontal direction
±90°
|
|||
|
Response speed
|
50msec/100msec/400msec/700msec.for optional
|
|||
|
Power voltage
|
DC10.5~24V AC10.5~18V
|
|||
|
Current consumption
|
77mAmax
|
85mAmax
|
||
|
Circuit breaker output operating
|
Invades alarm: Response time output ( at least 2
second)
|
|||
|
Power voltage reduce alarm:continuous output when power
voltage reducing( at least 2 second)
|
||||
|
Replay output
|
No-voltage contact output,contact frame AC/DC
30V,0.5A(loadresistor)
|
|||
|
Alarm action Indicate
|
Intrusion warning:red LED are alight when
warning
|
|||
|
Warning when power voltage is low:red LED turn off when
warning
|
||||
|
Adjustment of optical axis
|
Output voltage:maximize the test junction's output voltage of
receiver
|
|||
|
LED digital display shows signal strength
|
||||
|
Tamper output
|
Condition:receiver's housing(open)
contact(open)
|
|||
|
Freeze frame:no-voltage contact output.
contact rated AC/DC30V0.5A(resistance load)
|
||||
|
Power display
|
Green LED turns on when transmitter is power
on
|
|||
|
Operating environment
|
Temperature:-25℃～+55℃ Humidity:RH 95%
|
|||
|
Telescopic sight
|
Built-in
|
|||
