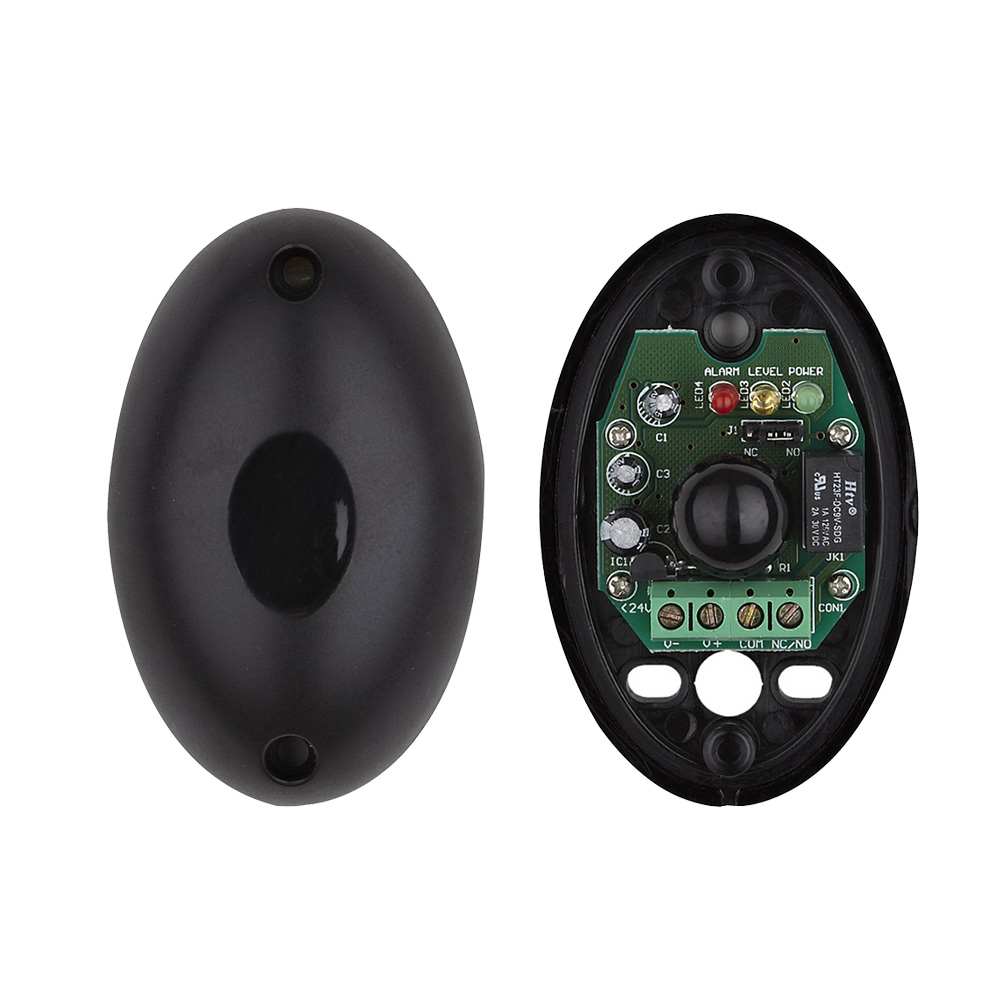

ABO Series One Beam Detector(Economy)
- Explain
1.Adopt aspheric surface lens, optical gathered, powerful,concentric.
2.Light resistance reaches 50.00lux, built-in automatic adjustment light
filtering system. avoid the influence from strong light or car light.
3.Unique Optical Design:The photoelectric beams have the ability to
penetrate compound glass.
4.When meet the bad weather and fog. the detector will enhance sensitivity
automatically to distinguish circuit.
5.Special structure design make it work in the bad environment
properly
6.Use C model circuit failure output.
|
Name
|
Single Beam Active Infrared Detector
|
|
|
Detection range
|
≤20m
|
|
|
Response speed
|
50msec
|
|
|
Infrared frequency
|
1.92khz
|
|
|
Power supply
|
DC10.5~24V
|
|
|
Wave length
|
940nm
|
|
|
Current comsumption
|
40mA Max/DC12V
|
|
|
Infrared angle
|
＜±10°
|
|
|
Operating environment
|
Temperature: -25℃～+55℃
|
Humidity:RH 95%
|
|
Ralay output
|
1A MAX 30V
|
|
|
Product size
|
48.2×76 ×21.6(mm)
|
|
