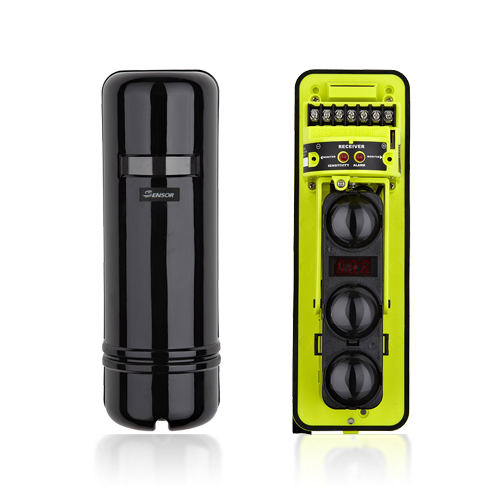

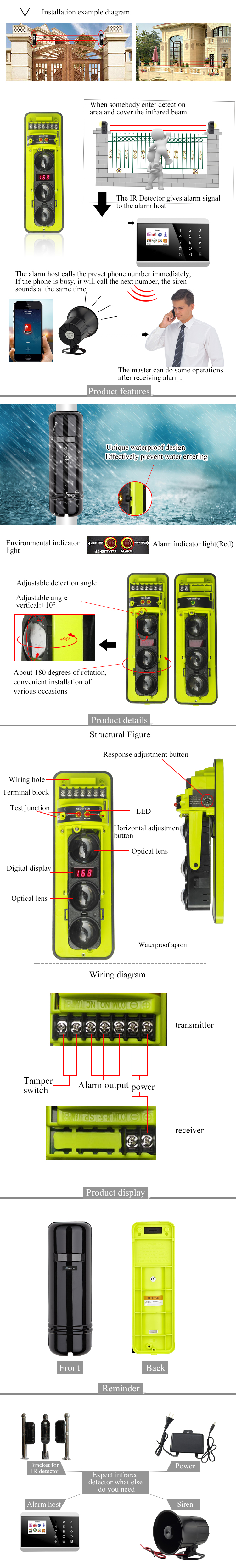

XA Series Three Beam Detector with LED digital display

Explain

1.Adopt three aspheric surface lens,achieve big-bore light beam.

2.Shell with LED visible window,the action can be confirmed more speedily after setting .

3.Unique product molding design,having sharp differences with other products.

4.Lightproof all black shell design,with new stray light filtering function.

5.IP66 waterproof grade,all around rubber O-ring ,it can be rainproof,dustproof and mothproof.

6.The receiver with LED digital display,calibrate more intuitively and conveniently.

Name

Three Beams Active Infrared Detector

Model

XA-050E

XA-100E

XA-150E

XA-200E

XA-250E

Warning distance

50m

100m

150m

200m

250m

Detection mode

Infrared Pulse

Detection way

3 beams blocked off at the same time

Optical axis adjustment range

Vertical direction±5°   Horizontal direction ±90°

Response speed

50msec/100msec/400msec/700msec.for optional

Power voltage

DC10.5~24V   AC10.5~18V

Current consumption

77mAmax

85mAmax

Circuit breaker output operating

Invades alarm: Response time output ( at least 2 second)

Power voltage reduce alarm:continuous output when power voltage reducing( at least 2 second)

Replay output

No-voltage contact output,contact frame AC/DC 30V,0.5A(loadresistor)

Alarm action Indicate

Intrusion warning:red LED are alight when warning

Warning when power voltage is low:red LED turn off when warning

Adjustment of optical axis

Output voltage:maximize the test junction's output voltage of receiver

LED digital display shows signal strength

Tamper output

Condition:receiver's housing(open) contact(open)

Freeze frame:no-voltage contact output.

            contact rated AC/DC30V0.5A(resistance load)

Power display

Green LED turns on when transmitter is power on

Operating environment

-25℃～+55℃ Humidity:RH 95%

Telescopic sight

Built-in

Name	Three Beams Active Infrared Detector
Model	XA-050E	XA-100E	XA-150E		XA-200E	XA-250E
Warning distance	50m	100m	150m		200m	250m
Detection mode	Infrared Pulse
Detection way	3 beams blocked off at the same time
Optical axis adjustment range	Vertical direction±5° Horizontal direction ±90°
Response speed	50msec/100msec/400msec/700msec.for optional
Power voltage	DC10.5~24V AC10.5~18V
Current consumption	77mAmax			85mAmax
Circuit breaker output operating	Invades alarm: Response time output ( at least 2 second)
	Power voltage reduce alarm:continuous output when power voltage reducing( at least 2 second)
Replay output	No-voltage contact output,contact frame AC/DC 30V,0.5A(loadresistor)
Alarm action Indicate	Intrusion warning:red LED are alight when warning
	Warning when power voltage is low:red LED turn off when warning
Adjustment of optical axis	Output voltage:maximize the test junction's output voltage of receiver
	LED digital display shows signal strength
Tamper output	Condition:receiver's housing(open) contact(open)
	Freeze frame:no-voltage contact output. contact rated AC/DC30V0.5A(resistance load)
Power display	Green LED turns on when transmitter is power on
Operating environment	-25℃～+55℃ Humidity:RH 95%
Telescopic sight	Built-in
