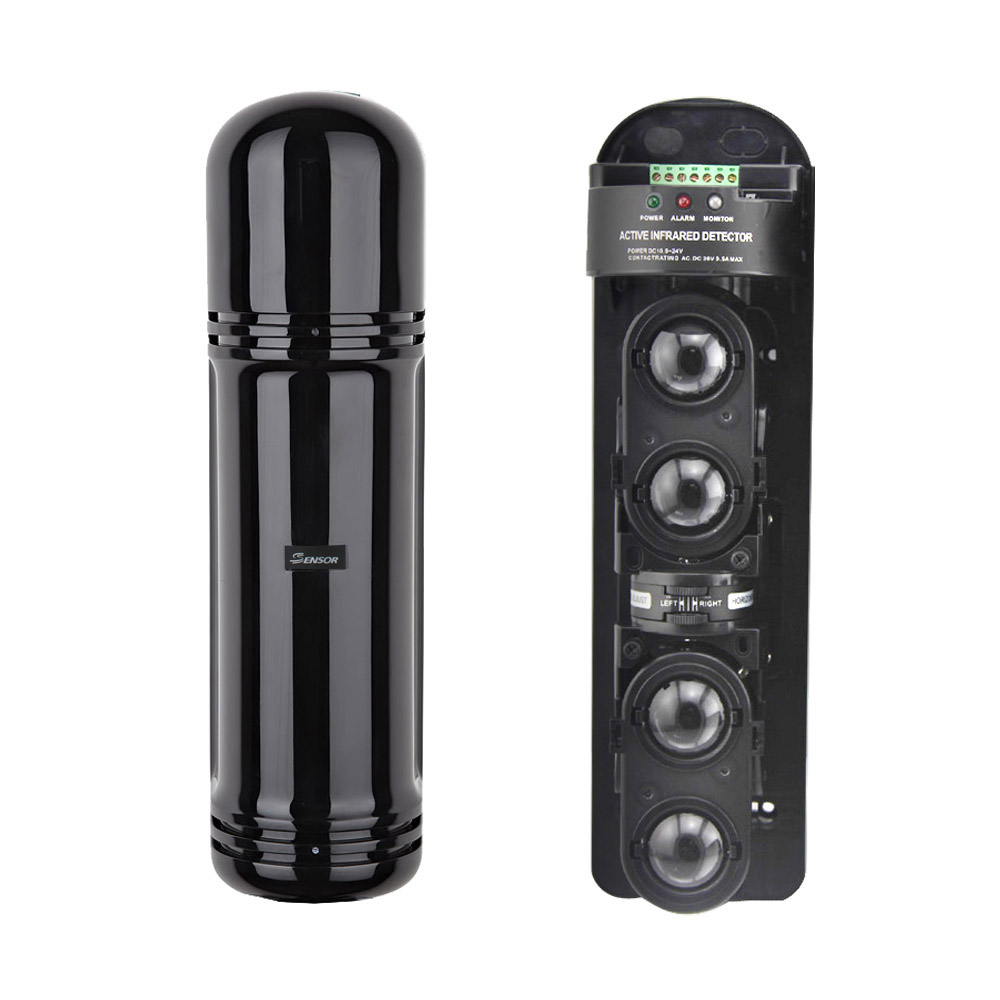

ABH Series (3 LED) Four Beams Detector(Economy)
- Explain
1.Adopt four aspheric surface lens, optical gathered, powerful, concentric.
2.Light resistance reaches 50.00lux, built-in automatic adjustment light filtering system. avoid the influence from strong light or car light.
3.Totally-sealed rainproof, dustproof,etc integration structure design makes it work in the bad environment properly.
4.When meet the bad weather and fog,the detector will enhance sensitivity automatically to distinguish circuit. (AGC circuit)
5.Built-in Optical sight and particular conversion circuit design, easy to adjustment.
6.The beams intercept data cycle is adjustable, it can help the beams to be more flexible and with stronger adaptability.
7.Horizontal/vertical Optical angle is easy to adjust and calibrate.
8.Step precision fine-tuning,calibration is more accurate
9.The receiver with LED signal indicator.( Calibration more accurate.)
10.Photosensitive redundant reach up to 99%.
11.Lightning prevention circuit design.
12.Use C model circuit failure output.
|
Name
|
Four Beams Active Infrared Detector
|
|||||||||
|
Model
|
ABH-50L
|
ABH-100L
|
ABH-150L
|
ABH-200L
|
ABH-250L
|
|||||
|
Warning distance(outdoor)
|
50m
|
100m
|
150m
|
200m
|
250m
|
|||||
|
Warning distance (indoor)
|
150m
|
300m
|
450m
|
600m
|
750m
|
|||||
|
Optical source
|
Infrared LED
|
|||||||||
|
Detection way
|
4 beams blocked off at the same time
|
|||||||||
|
Response speed
|
50msec~700msec
|
|||||||||
|
Alarm output
|
Relay contact output:NO.NC contact rating:AC/DC30V.0.5A
Max
|
|||||||||
|
Power supply
|
DC10.5~24V
|
|||||||||
|
Power consumption
|
95mAmax
|
100mAmax
|
100mAmax
|
100mAmax
|
105mAmax
|
|||||
|
Operating environment
|
Temperature:-25℃～+55℃
|
Humidity:RH 95%
|
||||||||
|
Tamper output
|
Contact output 1b DC24V.0.5A Max
|
|||||||||
|
Optical axis adjustment range
|
Vertical direction 20°(±10°) Horizontal direction
180°(±90°)
|
|||||||||
|
Telescopic sight
|
Built-in
|
|||||||||
|
Additional functions
|
Light indicates,OK indicator lamp,Testing
terminal
|
|||||||||
