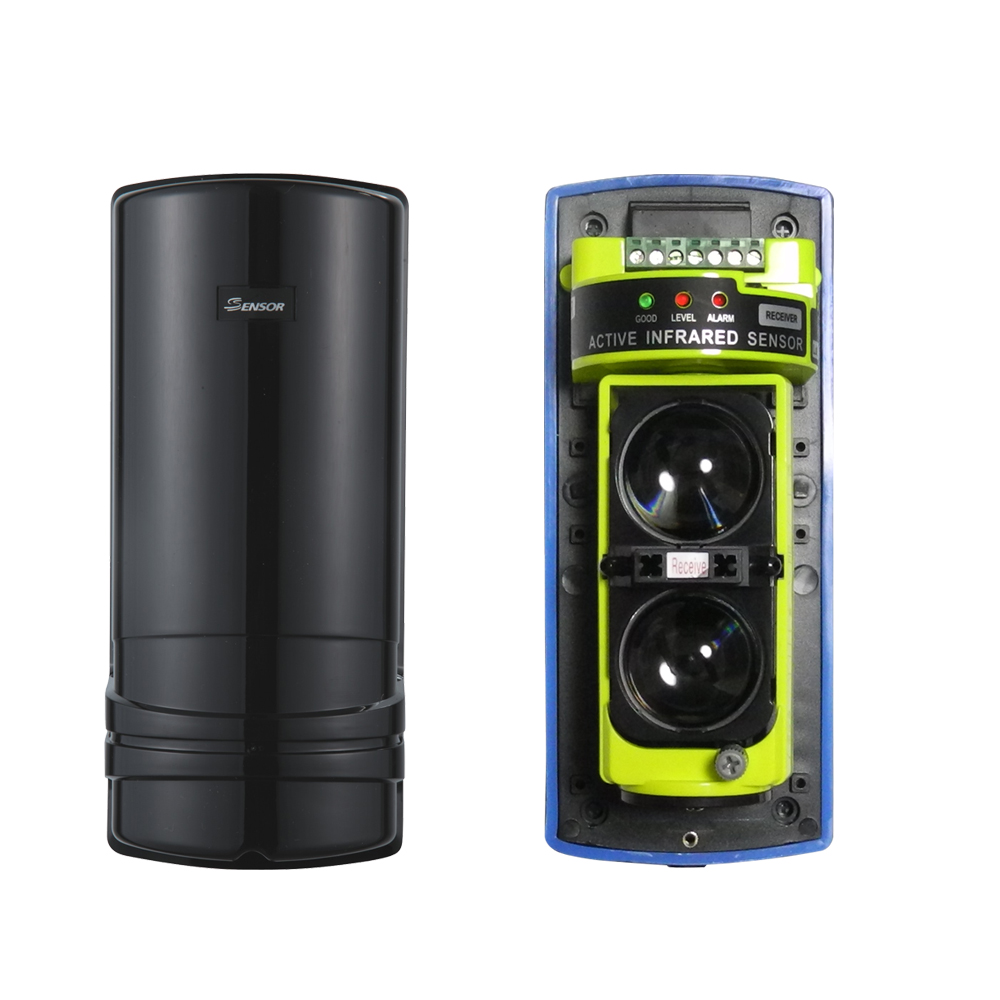

ABT² Series (3 LED)Two beams Detector

1.LED signal strength indicator

2.All around rubber O ring IP66 waterproof grade

3.Appearance design patent,different from similar products

4.Use thread calibration,more convenient and accurate.

5.Adopt two aspheric surface lens,optical gathered, powerful,concentric.

6.Adopt unique base design,easy to install.

7.Light resistance reaches 50.00lux, built-in automatic adjustment light filtering system. avoid the influence from strong light or car light.

8.Totally-sealed rainproof, dustproof,etc integration structure design make it work in the bad environment properly.

9.Built-in Optical sight and particular conversion circuit design, easy to adjustment

10.The beams intercept data cycle is adjustable, it can help the beams to be more flexible and with stronger adaptability.

11.The receiver with LED signal indicator.( Calibration more accurate.)

12.Horizontal/vertical Optical angle is easy to adjust and calibrate.

13.Step precision fine-tuning, so that calibration is more accurate

14.Photosensitive redundant reach up to 99%.

15.Lightning prevention circuit design

16.Use C model circuit failure output

Model		ABT-20	ABT-30	ABT-40	ABT-60	ABT-80	ABT-100
Alertdistance	(Out door)	20m	30m	40m	60m	80m	100m
	(Indoor)	60m	90m	120m	180m	240m	300m
Maximun reach		200m	350m	450m	650m	900m	1100m
Detection		2 beams blocked simultaneous
Optical source		Infrared LED
Response speed		50-700msec
Alarm output		Relay contact output;NO.NC contact rating:AC/DC30V.0.5A   MAX DC10.5-24V
Power supply		DC10.5~24V
Power consumption		40mAmax	40mAmax	55mAmax	55mAmax	65mAmax	65mAmax
Operation temperature humidity		- 25 ° C ～ 55 ° C
Dimensions		Refer to its diagram
Tamper output		Contact output 1b DC24v.0.5A MAX
Optical axis adjustmen(H)		180 ° （±90 ° ）
Optical axis adjustmen(V)		20 ° （±10 °）
Sighting telescope		Built-in
Additiona functions		Light indicates,OK indicator light, Testing terminal
