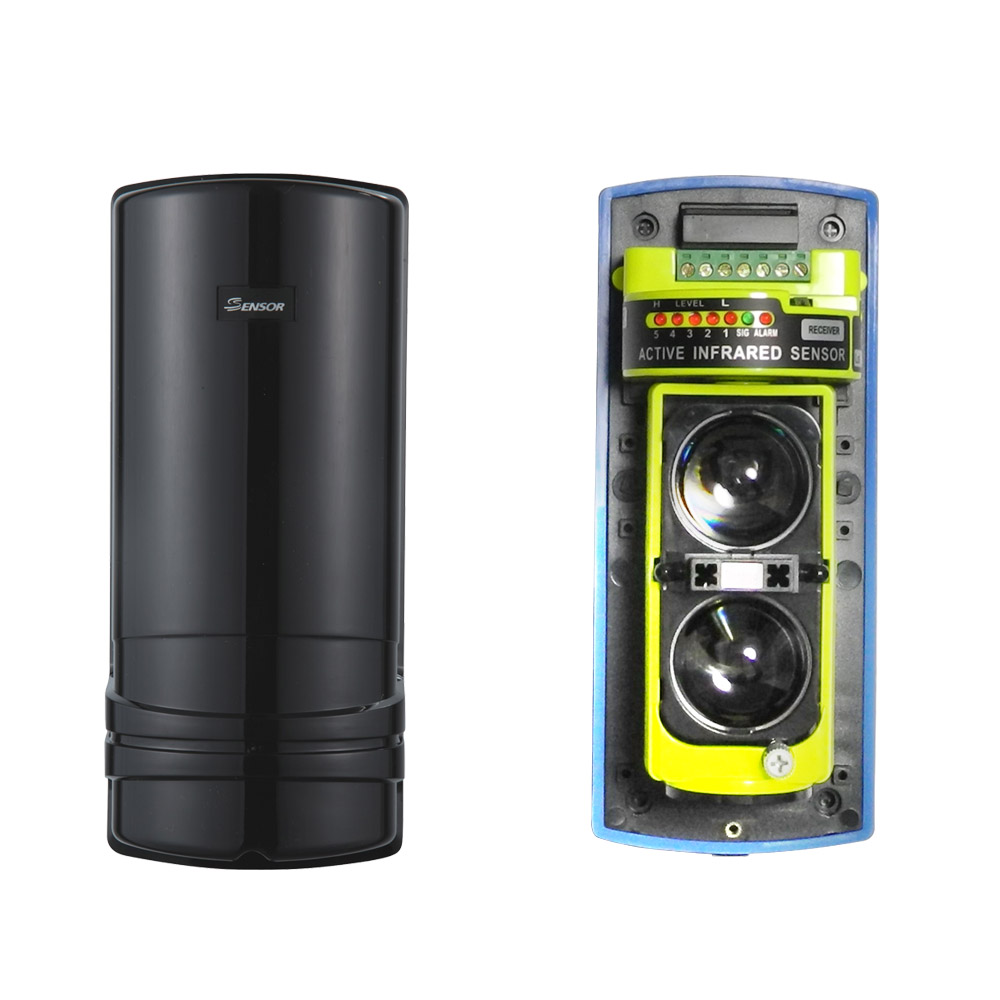

ABT² Series (7 LED)Two beams Detector

1.LED signal strength indicator

2.All around rubber O ring IP66 waterproof grade

3.Appearance design patent,different from similar products

4.Use thread calibration,more convenient and accurate.

 5.Adopt two aspheric surface lens,optical gathered, powerful,concentric.

6.Adopt unique base design,easy to install.

7.Light resistance reaches 50.00lux, built-in automatic adjustment light filtering system. avoid the influence from strong light or car light.

8.Totally-sealed rainproof, dustproof,etc integration structure design make it work in the bad environment properly.

9.Built-in Optical sight and particular conversion circuit design, easy to adjustment

10.The beams intercept data cycle is adjustable, it can help the beams to be more flexible and with stronger adaptability.

11.The receiver with LED signal indicator.( Calibration more accurate.)

12.Horizontal/vertical Optical angle is easy to adjust and calibrate.

13.Step precision fine-tuning, so that calibration is more accurate

14.Photosensitive redundant reach up to 99%.

15.Lightning prevention circuit design

16.Use C model circuit failure output

Model	ABT-20  ABT-30  ABT-40  ABT-60  ABT-80 ABT-100
Alertdistance (Out door) (Indoor)	20m     30m     40m     60m     80m   100m    60m     90m     120m    180m    240m  300m
Maximun reach	200m    350m   450m   650m    900m  1100m
Detection	2 beams blocked simultaneous
Optical source	Infrared LED
Response speed	50-700msec
Alarm output	Relay contact output;NO.NC contact rating:AC/DC30V.0.5A   MAX DC10.5-24V
Power supply	DC10.5-24V
Power consumption	40mAmax/40mAmax/55mAmax/55mAmax/65mAmax/65mAmax
Operation temperature&humidity	temperature:-25℃-+55℃ humidity：RH.95%below
Dimensions	Refer to its diagram
Tamper output	Contact output 1b DC24v.0.5A MAX
Optical axis adjustmen(H)	180°（±90°）
Optical axis adjustmen(V)	20°（±10°）
Sighting telescope	Built-in
Additiona functions	Light indicates,OK indicator light,Testing terminal
