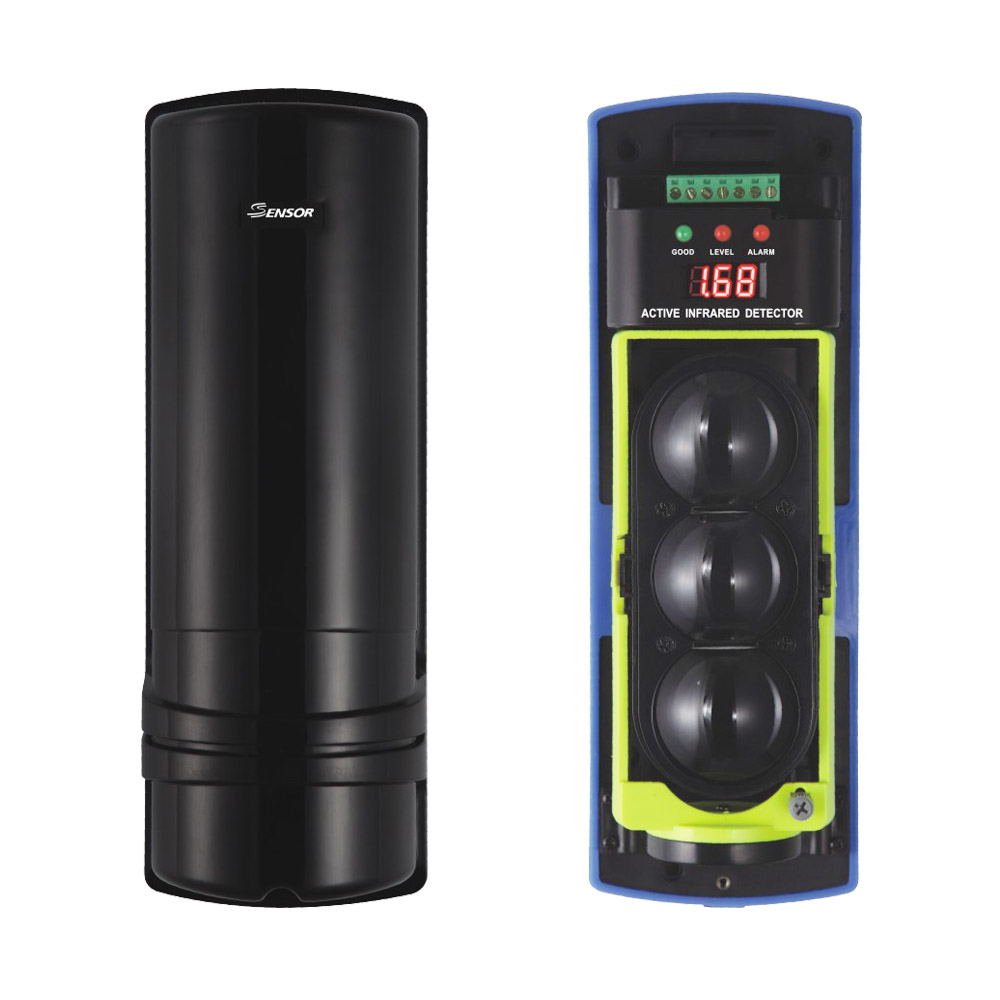

ABE²Series Digital Display Three beams Detector
- Explain
1.Adopt three aspheric surface lens,optical gathered, powerful,concentric.
2.Adopt unique base design,easy to install.
3.Light resistance reaches 50.00lux, built-in automatic adjustment light filtering system. avoid the influence from strong light or car light.
4.Totally-sealed rainproof, dustproof,etc integration structure design make it work in the bad environment properly.
5.Built-in Optical sight and particular conversion circuit design, easy to adjustment
6.The beams intercept data cycle is adjustable, it can help the beams to be more flexible and with stronger adaptability.
7.Adopt thread calibration more convenient and accurate 8.Horizontal/vertical Optical angle is easy to adjust and calibrate.
9.Step precision fine-tuning, so that calibration is more accurate
10.Photosensitive redundant reach up to 99%.
11.Lightning prevention circuit design
12.Use C model circuit failure output.
13.Digital display to show signal strength
2.Adopt unique base design,easy to install.
3.Light resistance reaches 50.00lux, built-in automatic adjustment light filtering system. avoid the influence from strong light or car light.
4.Totally-sealed rainproof, dustproof,etc integration structure design make it work in the bad environment properly.
5.Built-in Optical sight and particular conversion circuit design, easy to adjustment
6.The beams intercept data cycle is adjustable, it can help the beams to be more flexible and with stronger adaptability.
7.Adopt thread calibration more convenient and accurate 8.Horizontal/vertical Optical angle is easy to adjust and calibrate.
9.Step precision fine-tuning, so that calibration is more accurate
10.Photosensitive redundant reach up to 99%.
11.Lightning prevention circuit design
12.Use C model circuit failure output.
13.Digital display to show signal strength
14.All around rubber O-ring IP66 waterproof grade
|
Name
|
Three Beams Active Infrared Detector
|
|||||||||
|
Model
|
ABE2-50
|
ABE2-100
|
ABE2-150
|
ABE2-200
|
ABE2-250
|
|||||
|
Warning distance(outdoor)
|
50m
|
100m
|
150m
|
200m
|
250m
|
|||||
|
Warning distance (indoor)
|
150m
|
300m
|
450m
|
600m
|
750m
|
|||||
|
Optical source
|
Infrared LED
|
|||||||||
|
Detection way
|
3 beams blocked off at the same time
|
|||||||||
|
Response speed
|
50msec~700msec
|
|||||||||
|
Alarm output
|
Relay contact output:NO.NC contact rating:AC/DC30V.0.5A
Max
|
|||||||||
|
Power supply
|
DC10.5~24V
|
|||||||||
|
Power consumption
|
70mAmax
|
80mAmax
|
90mAmax
|
90mAmax
|
100mAmax
|
|||||
|
Operating environment
|
Temperature:-25℃～+55℃
|
Humidity:RH 95%
|
||||||||
|
Tamper output
|
Contact output 1b DC24V.0.5A Max
|
|||||||||
|
Optical axis adjustment range
|
Vertical direction 20°(±10°) Horizontal direction
180°(±90°)
|
|||||||||
|
Telescopic sight
|
Built-in
|
|||||||||
|
Additional functions
|
Light indicates,OK indicator lamp,Testing
terminal
|
|||||||||
