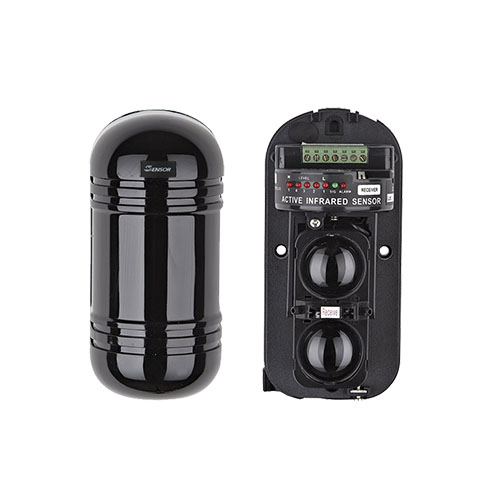

ABT Series(7 LED) Two beams Detector

1.Adopt two aspheric surface lens,optical gathered, powerful,concentric.
2.Adopt unique base design,easy to install.
3.Light resistance reaches 50.00lux, built-in automatic adjustment light filtering system. avoid the influence from strong light or car light.
4.Totally-sealed rainproof, dustproof,etc integration structure design make it work in the bad environment properly.
5.Built-in Optical sight and particular conversion circuit design, easy to adjustment
6.The beams intercept data cycle is adjustable, it can help the beams to be more  flexible and with stronger adaptability.
7.The receiver with 5 LED signal strength indicator.( Calibration more accurate.)8.Horizontal/vertical Optical angle is easy to adjust and calibrate.
9.Step precision fine-tuning, so that calibration is more accurate
10.Photosensitive redundant reach up to 99%.
11.Lightning prevention circuit design
12.Use C model circuit failure output.

Name	Two Beams Active Infrared Detector
Model	ABT-20		ABT-30		ABT-40		ABT-60		ABT-80		ABT-100
Warning distance(outdoor)	20m		30m		40m		60m		80m		100m
Warning distance (indoor)	60m		90m		120m		180m		240m		300m
Maxmun reach	200m		350m		450m		650m		900m		1100m
Optical source	Infrared LED
Detection way	2 beams blocked off at the same time
Response speed	50msec~700msec
Alarm output	Relay contact output:NO.NC contact rating:AC/DC30V.0.5A Max
Power voltage	DC10.5~24V
Power consumption	40mAmax	40mAmax		55mAmax		55mAmax		65mAmax		65mAmax
Operating environment	Temperature:-25℃～+55℃					Humidity:RH 95%
Tamper output	Contact output 1b DC24V.0.5A Max
Optical axis adjustment range	Vertical direction 20°(±10°)    Horizontal direction  180°(±90°)
Telescopic sight	Built-in
Additional functions	Light indicates,OK indicator lamp,Testing terminal
