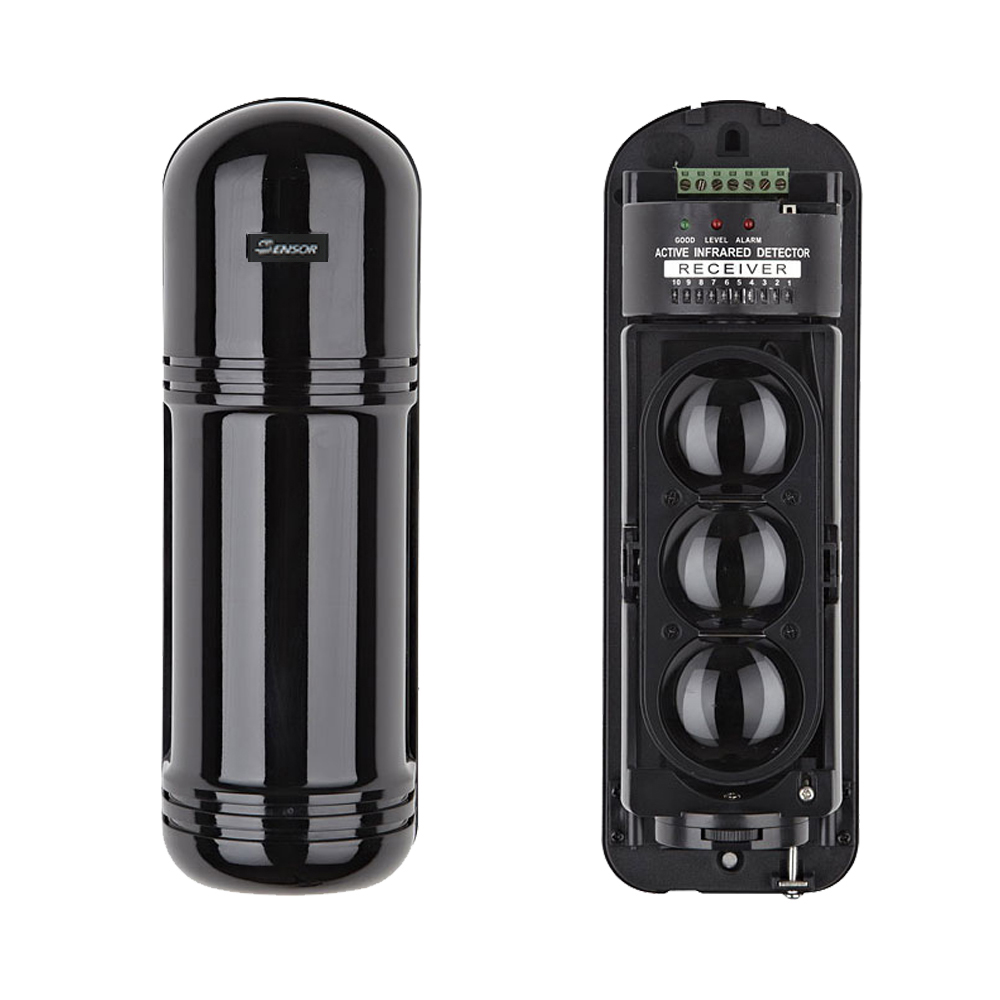

ABE Series(10 LED) Three Beams Detector

1.Adopt three aspheric surface lens,optical gathered, powerful,concentric.
2.Adopt unique base design,easy to install.
3.Light resistance reaches 50.00lux, built-in automatic adjustment light filtering system. avoid the influence from strong light or car light.
4.Totally-sealed rainproof, dustproof,etc integration structure design make it work in the bad environment properly.
5.Built-in Optical sight and particular conversion circuit design, easy to adjustment
6.The beams intercept data cycle is adjustable, it can help the beams to be more  flexible and with stronger adaptability.
7.The receiver with 10 LED signal strength indicator.( Calibration more accurate.)8.Horizontal/vertical Optical angle is easy to adjust and calibrate.
9.Step precision fine-tuning, so that calibration is more accurate
10.Photosensitive redundant reach up to 99%.
11.Lightning prevention circuit design
12.Use C model circuit failure output.

Name	Three Beams Active Infrared Detector
Model	ABE-50	ABE-100		ABE-150			ABE-200		ABE-250
Warning distance(outdoor)	50m	100m		150m			200m		250m
Warning distance (indoor)	150m	300m		450m			600m		750m
Optical source	Infrared LED
Detection way	3 beams blocked off at the same time
Response speed	50msec~700msec
Alarm output	Relay contact output:NO.NC contact rating:AC/DC30V.0.5A Max
Power supply	DC10.5~24V
Power consumption	70mAmax		80mAmax		90mAmax			90mAmax		100mAmax
Operating environment	Temperature:-25℃～+55℃					Humidity:RH 95%
Tamper output	Contact output 1b DC24V.0.5A Max
Optical axis adjustment range	Vertical direction 20°(±10°)    Horizontal direction  180°(±90°)
Telescopic sight	Built-in
Additional functions	Light indicates,OK indicator lamp,Testing terminal
