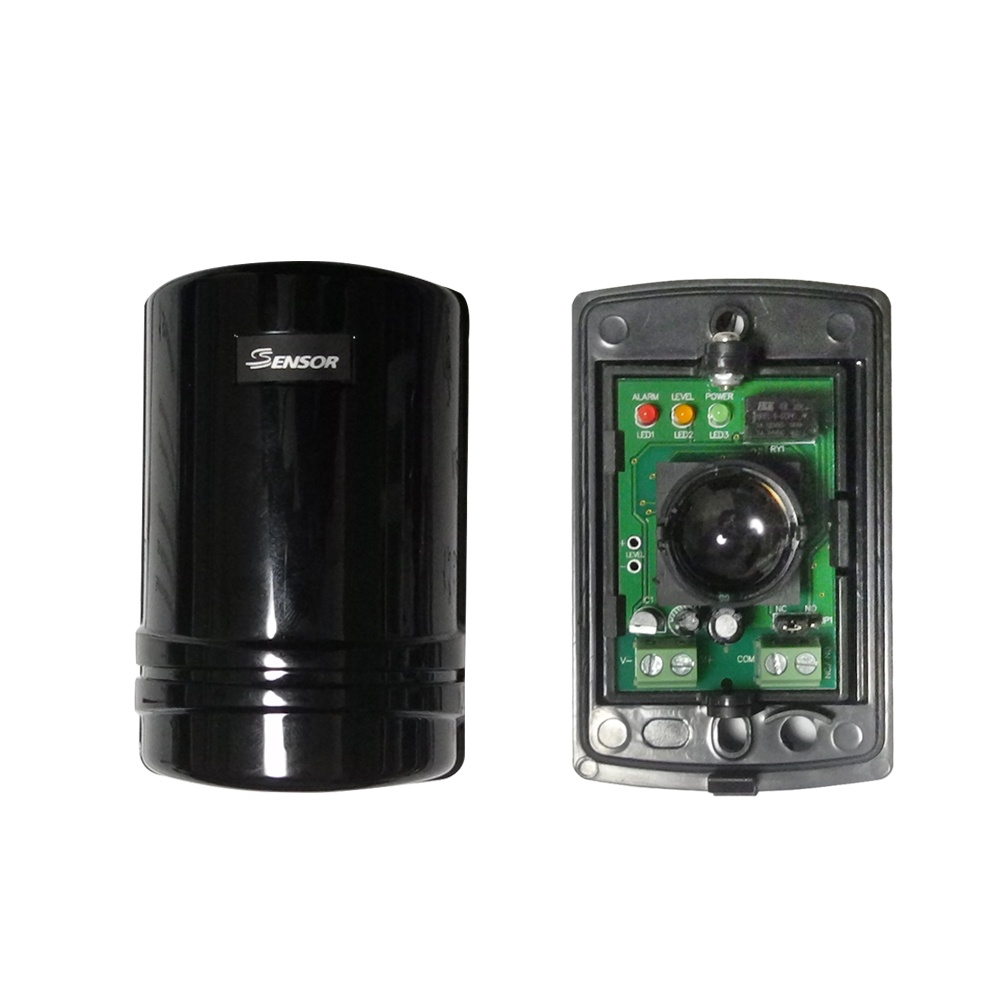

ABO² Series One Beam Detector

1.Optical axis adjustment(H)±15°；

2.All around tubber O-ring IP-66 waterproof grade;

3.Adopt aspheric surface lens, optical gathered, powerful,concentric；

4.Light resistance reaches 50.00lux, built-in automatic adjustment light filtering system. avoid the influence from strong light or car light；

5.Unique Optical Design:The photoelectric beams have the ability to penetrate compound glass；

6.When meet the bad weather and fog. the detector will enhance sensitivity automatically to distinguish circuit；

7.Special structure design make it work in the bad environment properly.

8.Use C model circuit failure output.

Power supply	DC 10.5V-24V/0.5A
Maximum current	TX:17.3maMAX RX:27.3maMAX
Optical source	Infrared Pulse
Infrared Wave Length	940nm
Infrared transmission frequency	393HZ
Response speed	50ms
Alarm output time	≥2Second
Detection mode	Block off the infrared beam
Infrared angle	＜±10°
Infrared distance	≤20m
Relay contact capacity	AC、DC30V、0.5Amax
Working environment	-25℃-+55℃
Product dimension	94*60*46（mm)
