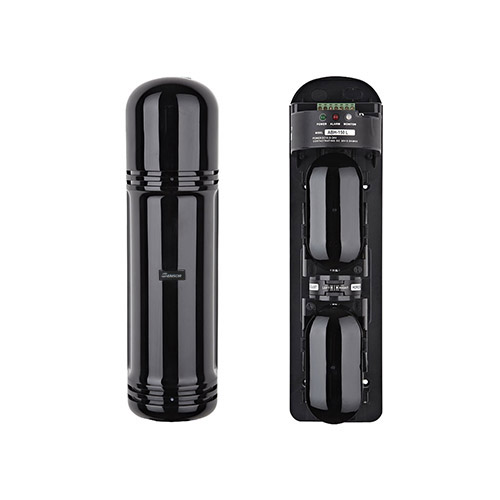

ABH Series (3 LED) Four Beams Detector
- Explain
2.Light resistance reaches 50.00lux, built-in automatic adjustment light filtering system. avoid the influence from strong light or car light.
3.Totally-sealed rainproof, dustproof,etc integration structure design makes it work in the bad environment properly.
4.When meet the bad weather and fog,the detector will enhance sensitivity automatically to distinguish circuit. (AGC circuit)
5.Built-in Optical sight and particular conversion circuit design, easy to adjustment.
6.The beams intercept data cycle is adjustable, it can help the beams to be more flexible and with stronger adaptability.
7.Horizontal/vertical Optical angle is easy to adjust and calibrate.
8.Step precision fine-tuning,calibration is more accurate
9.The receiver with 10 LED signal strength indicator.( Calibration more accurate.)
10.Photosensitive redundant reach up to 99%.
11.Lightning prevention circuit design.
12.Use C model circuit failure output.
|
Mode |
ABH-50L/100L/150L/200L/250L |
|
Alert distance(Outdoor) (Indoor) |
50m 100m 150m 200m 250m 150m 300m 450m 600m 750m |
|
Number of beams |
4 beams |
|
Detection |
4 beams blocked simultaneous |
|
Optical source |
Infrared LED |
|
Response speed |
50-700msec |
|
Alarm output |
Relay contact output: No. Nc contact rating:AC/DC30V 0.5AMAX |
|
Power |
DC10.5-24V |
|
Power consumption |
95mAmax/100mAmax/100mAmax/100 mAmax/105mAmax |
|
Operation temperature |
-25℃-+55℃ |
|
Tamper output |
Contact output 1b DC24v 0.5amax |
|
Optical axis adjustment(H) Optical axis adjustment(V) |
180°（±90°） 20°（±10° ） |
|
Additional functions |
Light indicates, OK indicator light, Testing terminal |
