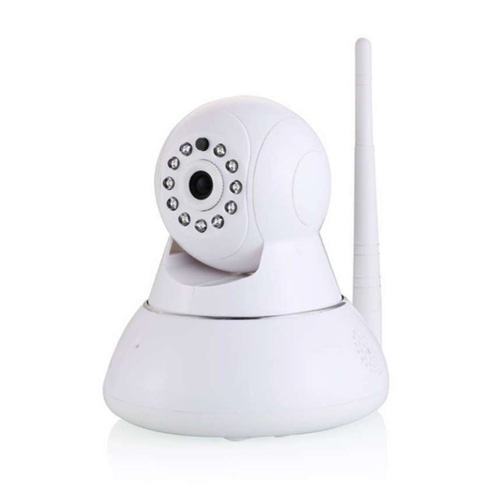

ALEPN TECHNOLOGY ( China )

1.Millions of high-definition digital image resolution up to 720p and 960p, support bidirectional stream

2.Remote visual, two-way communication

3.Support sensor type wireless 1527 agreement and RF433MHZ

4.Scene horn alarm, send remote alarm message(mobile or email)

5.Support TF card storage maximum support 64GB

6.Support 2.4G router

7.Support power DC5V2A

8.Support 355 degrees horizontal and 120 degrees vertical

9.Support motion detection function

10.Appearance: Super snowman designs, the rotatable structure

11.Light source: Built-in dot-matrix infrared light, make dark room like daytime as clear

	Model	ALN-XR100
Video camera	Sensor Type	1/4” CMOS
	Minimum illumination	Color：0.5Lux@(F1.2,AGC ON),0LUX with IR
	Minimum illumination	Black and white：0.05Lux@(F1.2,AGC ON),0LUX with IR
	Electronic Shutter	1/50（1/60）s~1/100,000s
	Shot	Standard 3.6mm
Compression Standard	Video compression standards	H.264HighProfile, MJPEG screen shot
Compression Standard	Compression output rate	30Kbps~2Mbps
Image	Effective pixels	1280*720
Function	Memory function	SD card storage, network storage
	Smart alarm	Motion detection
	Support agreement	TCP/IP，HTTP，DDNS，NTP(HTTPS,SIP,802.1X）
	General features	Anti-flicker, third stream, password protection, heartb
Interface	Audio input	A built-in MIC
	Audio output	Built a high-fidelity speakers
	Network Interface	A RJ4510 / 100M Ethernet port should automatically
	Wireless interface	An external antenna connection wifi
	TF card interface	A TF card interface, maximum support 32G
	Reset button	Restore default settings
	Rotation angle	Horizontal: 355 °, Vertical: 120 °
General specifications	Infrared	6 LED Light
	Operating voltage	DC5V/2.0A
	Power	<4W
	Distance	3-15M
	Temperature	-10℃ ~ +55 ℃
	Net weight	495g
	Humidity	10 ~ 90%
	Size	92×92×123(mm)
